| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

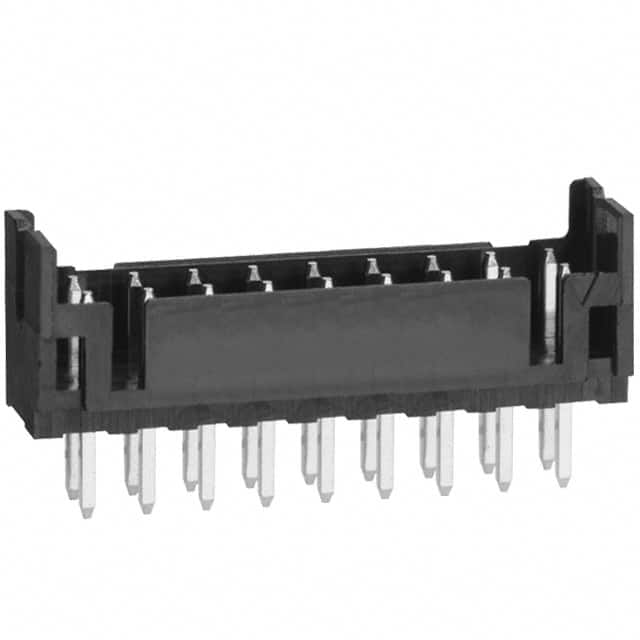

The Hirose DF11-18DP-2DSA(08) is a 2mm double-row header connector from the DF11 series. It features 18 positions arranged in 2 rows with a 2.00mm pitch and 2.00mm row spacing. This through-hole component uses solder termination and has a shrouded 4-wall box design with a detent lock for secure mating. Contacts are made of brass with a tin finish (1.00µm thickness), and the insulator is black polyamide (PA) nylon rated UL94 V-0. Electrical ratings include 2A current per contact (header rating) and 250V AC voltage. Operating temperature ranges from -30°C to 85°C. The connector supports board-to-board or cable-to-board styles and is suitable for use in business equipment such as copiers and printers. Compliance includes RoHS3, REACH unaffected, MSL 1, and UL/CSA certifications (E52653 and LR95109 respectively).
18 positions
2.00mm
2A per contact (header rating)
250V AC
Through Hole
-30°C to 85°C
Polyamide (PA), Nylon
