| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,639 pcs
|
1639 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,439 pcs
|
1439 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

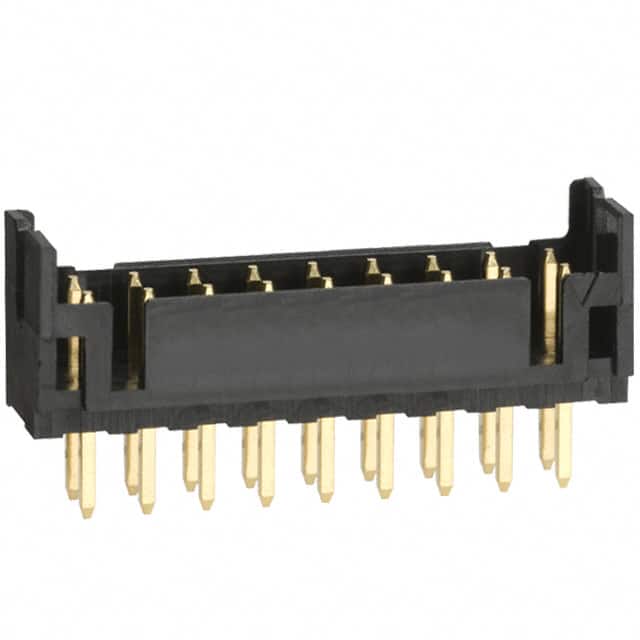

The DF11-18DP-2DSA(01) is a 2mm double-row header from Hirose Electric's DF11 series. It features 18 male pins arranged in 2 rows, with a pitch of 2.00mm and row spacing of 2.00mm. The connector is shrouded with a 4-wall design and includes a detent lock for secure mating. It is designed for through hole soldering, making it suitable for board-to-board or cable connections.
Electrical ratings include a current rating of 2A per contact and a voltage rating of 250V AC. The contacts are made of brass with a gold plating thickness of 8.00µin, ensuring reliable conductivity. The insulation material is black polyamide (PA) nylon with a UL94 V-0 flammability rating. Operating temperature range is -30°C to 85°C.
Mechanical specifications include a contact length of 3.00mm and overall contact length of 7.60mm. The insulation height is 6.60mm. The connector is rated for 0.3N min and 4.4N max insertion/extraction force per contact.
Applications include business equipment such as copiers and printers, as per the datasheet. The DF11 series offers space-saving design with double-row contacts in a 5mm width.
18 positions loaded all.
2.00mm (0.079 inches).
2A per contact.
250V AC.
Through hole, solder termination.
-30°C to 85°C.
Yes, it has a detent lock fastening type.
