| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

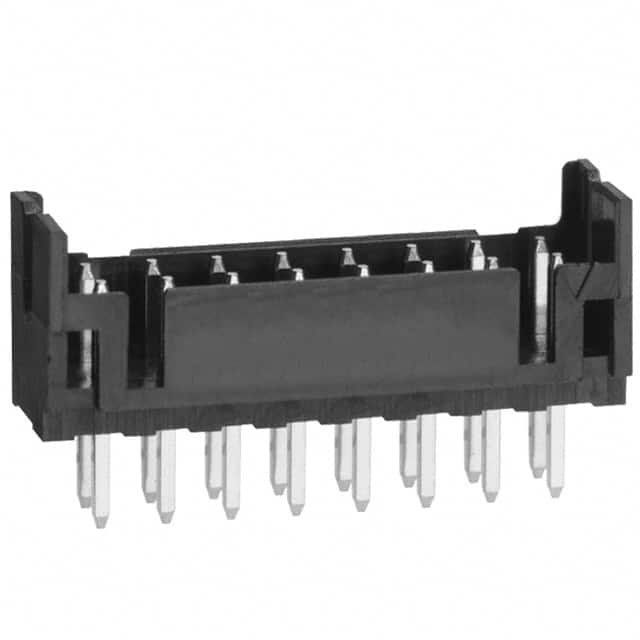

The Hirose DF11-16DP-2DSA(24) is a 16-position, 2-row header connector from the DF11 series, offering a 2.00mm pitch in a compact 5mm width. It features male pin contacts with tin plating over brass, rated for 2A at 250V AC. The through-hole mounting style with solder termination ensures reliable mechanical attachment.
The shrouded 4-wall design with detent lock prevents mis-mating and provides secure fastening. The insulator is molded from black UL94 V-0 rated nylon, supporting an operating temperature range of -30°C to +85°C. Electrical performance includes minimum insulation resistance of 1000MΩ at 500V DC and maximum contact resistance of 30mΩ at 100mA.
This header is suitable for board-to-board or cable applications in business equipment such as copiers, printers, and other compact electronic devices requiring multiple signal lines in a space-saving layout.
It has 16 positions arranged in 2 rows (8 positions per row).
The pitch is 2.00mm (0.079 inches).
The current rating is 2A per contact at 250V AC.
The voltage rating is 250V AC.
This header uses through-hole mounting with solder termination.
The operating temperature range is -30°C to +85°C.
The contact finish is tin with a thickness of 1.00µm (39.4µin).
