| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
206 pcs
|
206 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

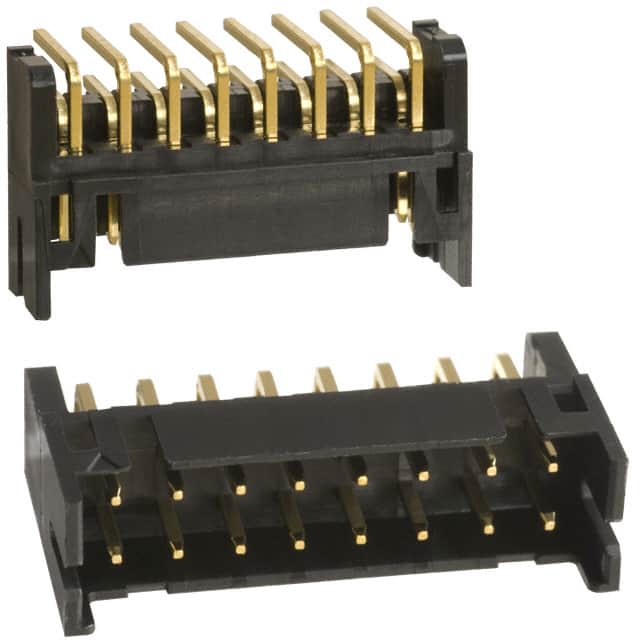

The DF11-16DP-2DS(52) is a 16-position, 2mm pitch right-angle header connector from Hirose Electric's DF11 series. It features male pin contacts with gold plating (8µin thickness) and brass contact material. The connector is shrouded with a 4-wall design and includes a detent lock for secure mating. It is rated for 2A current and 250V voltage, with an operating temperature range of -40°C to 85°C. The insulation material is polyamide (nylon) with UL94 V-0 flammability rating. This header is suitable for board-to-board or cable applications. The through-hole right-angle mounting allows for compact PCB layouts. The contact length is 3.00mm and insulation height is 5.00mm. The connector is RoHS3 compliant and REACH unaffected.
16 positions, all loaded.
2.00mm (0.079 inches).
2A per contact.
250V AC/DC.
Through hole, right angle.
-40°C to 85°C.
Gold, 8µin (0.203µm) thickness.
