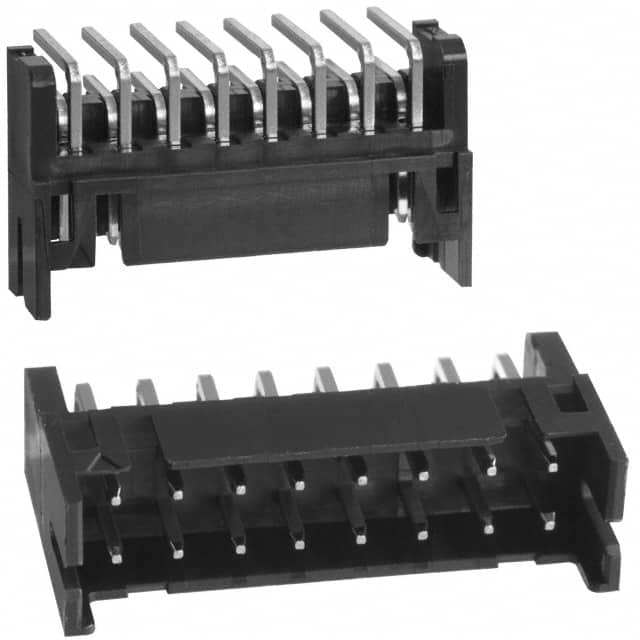

The DF11-16DP-2DS(24) is a 2mm double-row connector from Hirose's DF11 series, designed for board-to-board or cable applications. It features a 4-wall shrouded design with detent lock for secure mating.
Electrical specifications include a current rating of 2A (for AWG22-26 wire sizes), voltage rating of 250V AC, contact resistance of 30mΩ maximum, insulation resistance of 1000MΩ minimum, and withstanding voltage of 650V AC. The operating temperature range is -40°C to 85°C (datasheet specifies -30°C to 85°C). The connector is UL/CSA recognized (UL E52653, CSA LR95109).
Mechanically, the header has 16 positions in 2 rows with 2mm pitch and row spacing. It is through-hole mounted with a right-angle orientation and solder termination. The insulation is black polyamide (nylon) with UL94 V-0 flammability rating. Contacts are brass with tin plating (1.00µm thickness). Insertion/extraction force ranges from 0.3N to 4.4N.
Typical applications include business equipment such as copiers and printers. The DF11 series offers space-saving design and broad variation for different connection methods, including crimping and insulation displacement.
16 positions.
2.00mm (0.079 inches).
2A for AWG22-26 wire sizes.
250V AC.
Through hole, right angle.
-40°C to 85°C (datasheet specifies -30°C to 85°C).
Tin plating, 1.00µm thickness.
