| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

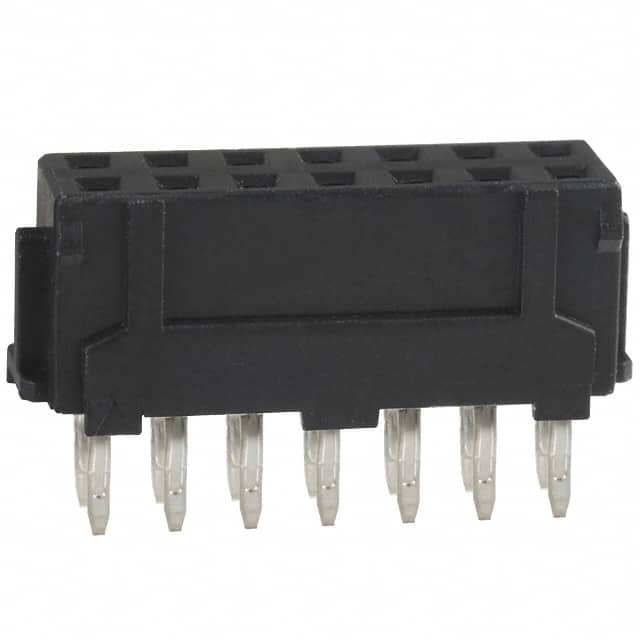

The Hirose Electric DF11-14DS-2DSA(05) is a 14-position receptacle from the DF11 series of narrow-pitch connectors. This female socket connector features a 2.00mm pitch and 2 rows, making it suitable for space-constrained designs in board-to-board or cable-to-board applications.
The connector uses through hole mounting with press-fit and solder termination options. A friction lock fastening type ensures secure mating. The contact finish is tin with a thickness of 78.7µin (2.00µm), rated for 2A current per contact and 250V voltage. The operating temperature range is -30°C to 85°C.
The housing is made of black UL94 V-0 rated material, with an insulation height of 6.20mm. Mated stacking heights of 7.8mm and 8.45mm are supported. All 14 positions are loaded. This component is RoHS3 compliant and REACH unaffected.
14 positions.
2.00mm (0.079 in).
2A.
250V.
Through hole.
-30°C to 85°C.
Tin with 78.7µin (2.00µm) thickness.
