| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,200 pcs
|
5200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Positions Loaded | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

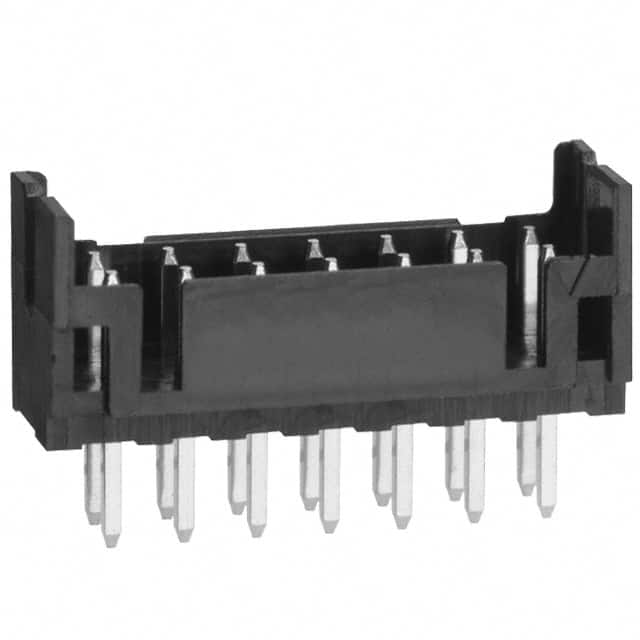

The Hirose Electric DF11-14DP-2DSA(08) is a 14-position, 2.00mm pitch rectangular header with a male pin contact type. This shrouded header features a 4-wall design with a detent lock fastening system, making it suitable for board-to-board or cable connections.
Electrical ratings include a current rating of 2A and a voltage rating of 250V. The contacts are made of brass with a tin finish (1.00µm thickness). The insulation is black polyamide (nylon) with a UL94 V-0 flammability rating.
The connector supports an operating temperature range of -30°C to 85°C. It is through-hole mounted with solder termination and all 14 positions are loaded. Contact length for mating is 3.00mm, with an overall contact length of 7.60mm and insulation height of 6.60mm.
The pitch is 2.00mm (0.079 inches).
It has 14 positions, all loaded, in 2 rows.
The current rating is 2A.
The voltage rating is 250V.
Through hole with solder termination.
