| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

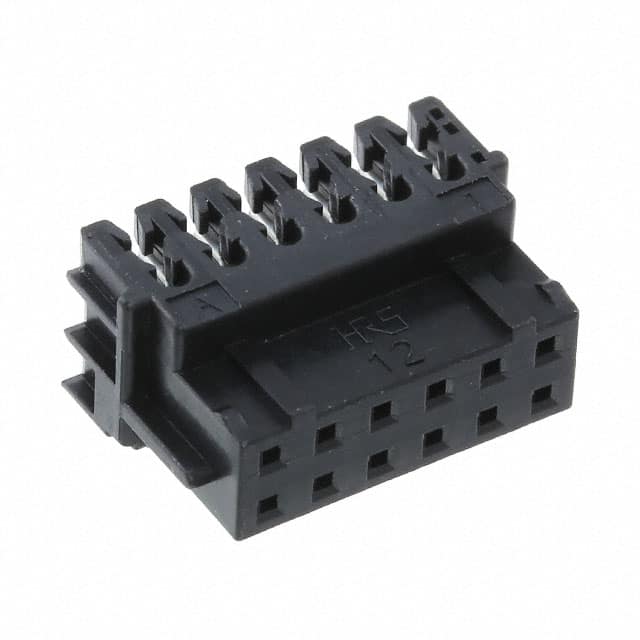

The DF11-12DS-2R26(05) is a 12-position receptacle connector from Hirose Electric, part of the DF11 series. It is designed for free hanging (in-line) mounting and uses IDC (Insulation Displacement Connection) termination for 26 AWG discrete wire.
Mechanically, the connector has 12 positions arranged in 2 rows with a 2.00mm pitch and 2.00mm row spacing. The contacts are female sockets with a tin finish, ensuring reliable conductivity. The connector body is black and features a closed end design to prevent stubbing during mating.
This connector is RoHS3 and REACH compliant, with an MSL rating of 1 (unlimited). It is suitable for wire-to-board applications where compact size and reliable connection are required.
The connector has 12 positions.
The pitch is 2.00mm (0.079 inches).
Free hanging (in-line) mounting.
IDC (Insulation Displacement Connection) for 26 AWG wire.
Tin.
Yes, RoHS3 compliant.
Designed for 26 AWG discrete wire.
