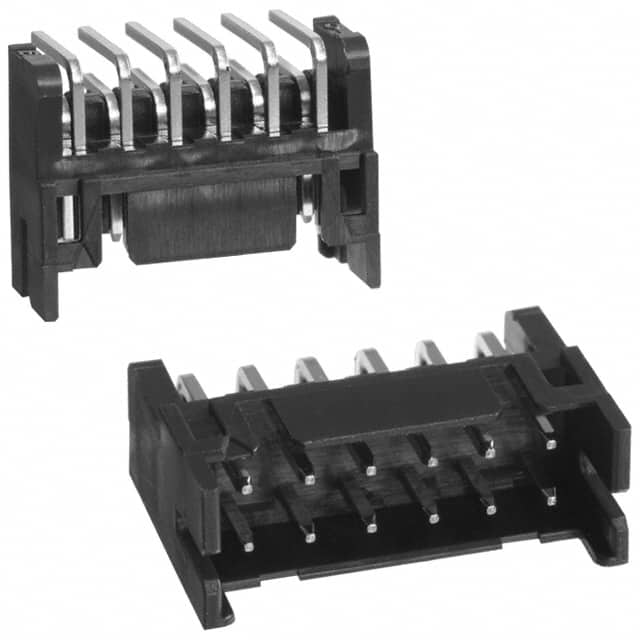

DF11-12DP-2DS(24)

The DF11-12DP-2DS(24) is a 12-position, 2mm pitch, double-row shrouded header connector from the Hirose DF11 series. It features a right-angle through-hole mounting style with solder termination, making it suitable for board-to-board or cable applications. The connector is fully shrouded with a 4-wall design and includes a detent lock mechanism for secure mating. The insulation is made of black polyamide (PA) Nylon with a UL94 V-0 flammability rating. Contacts are made of brass with a tin plating of 39.4µin (1.00µm) and have a square shape. The header is rated for 2A current and 250V AC, with an operating temperature range of -40°C to 85°C. Electrical characteristics include a minimum insulation resistance of 1000MΩ at 500V DC, a withstanding voltage of 650V AC for 1 minute, and a maximum contact resistance of 30mΩ at 100mA. The insertion/extraction force per contact is 0.3N min to 4.4N max. The connector is RoHS3 and REACH compliant, with an MSL of 1 (unlimited). This header is commonly used in business equipment such as copiers and printers.
