| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
840 pcs
|
840 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

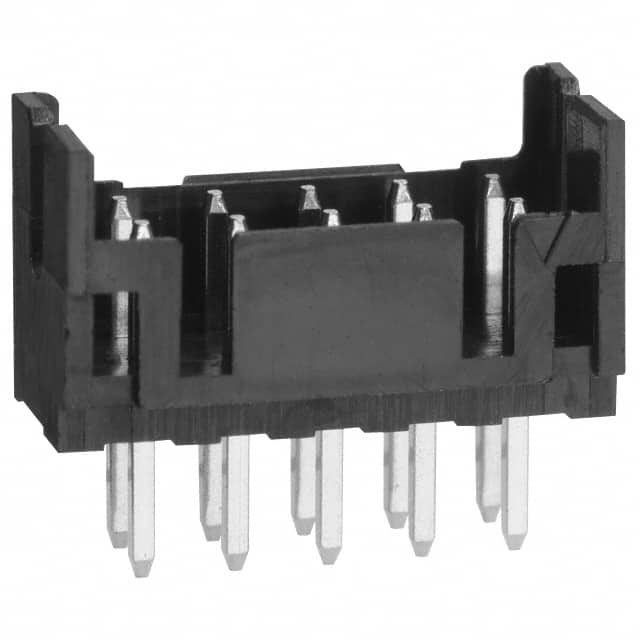

The DF11-10DP-2DSA(24) is a 10-position, 2-row male pin header from Hirose Electric's DF11 series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact board-to-board or cable-to-board connections. The connector is shrouded with a 4-wall design and includes a detent lock for secure mating.
Each contact is made of brass with a tin finish, rated for 2A current and 250V voltage. The contact length is 3.00mm with an overall contact length of 7.60mm. The insulation is black polyamide (nylon) with a UL94 V-0 flammability rating. The operating temperature range is -30°C to 85°C.
This header is through-hole mounted with solder termination, ideal for applications requiring reliable connections in industrial, consumer, or medical equipment. The 2.00mm pitch allows for higher density PCB layouts compared to standard 2.54mm headers.
10 positions (2 rows of 5).
2.00mm.
2A per contact.
250V.
Through Hole.
-30°C to 85°C.
Yes, it has a shrouded 4-wall design with detent lock.
