| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

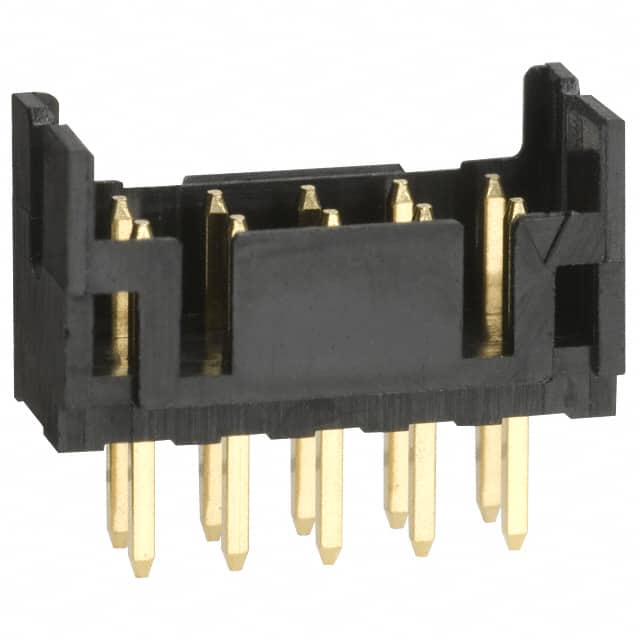

The DF11-10DP-2DSA(01) is a 10-position, 2-row header from Hirose Electric's DF11 series. It features a 2.00mm pitch and a shrouded 4-wall design with a detent lock for secure mating. The header uses through-hole mounting with solder termination, making it suitable for board-to-board or cable-to-board applications.
The contacts are made of brass with a gold finish of 8.00µin (0.203µm) thickness, ensuring reliable electrical performance. The insulation is black polyamide (nylon) with a UL94 V-0 flammability rating. The header is rated for 2A current and 250V voltage, with an operating temperature range of -30°C to 85°C.
This component is commonly used in industrial control, consumer electronics, and other applications requiring a compact, reliable interconnection. The overall contact length is 0.299" (7.60mm) with an insulation height of 6.60mm.
10 positions in 2 rows.
2.00mm (0.079 inches).
2A.
250V.
Through hole with solder termination.
-30°C to 85°C.
Gold with 8.00µin (0.203µm) thickness.
