| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

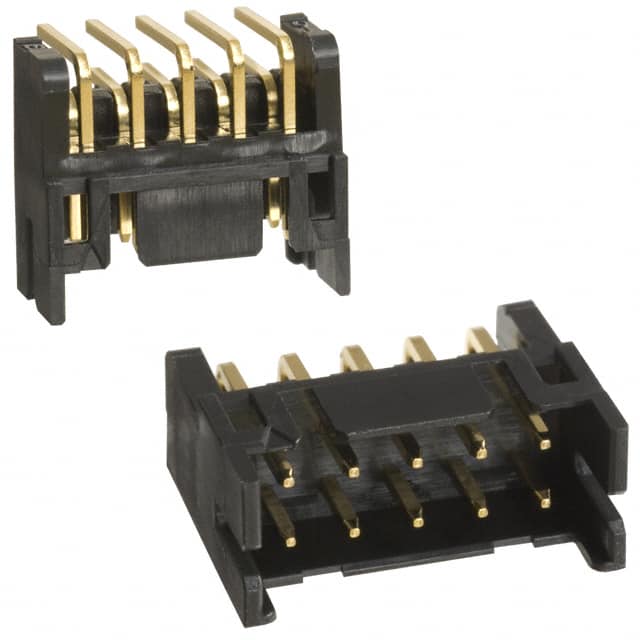

The Hirose Electric DF11-10DP-2DS(52) is a 10-position, 2-row rectangular header designed for board-to-board or cable applications. It features a 2.00 mm pitch and 2.00 mm row spacing, with a shrouded 4-wall design and detent lock fastening for secure mating. The header uses male pin contacts made of brass with a gold finish of 0.203 µm thickness, ensuring reliable conductivity and corrosion resistance. The insulation body is black polyamide (PA) nylon with a UL94 V-0 flammability rating and a moisture sensitivity level of MSL 1 (unlimited).
Electrically, the connector is rated for 2 A current and 250 V voltage, with an operating temperature range of -40°C to 85°C. The component is mounted via through hole, right angle orientation with solder termination, suitable for vertical board-to-board connections. Contact length is 3.00 mm and insulation height is 5.00 mm. The product is RoHS3 compliant and REACH unaffected, though compliance data is unverified.
This header is ideal for applications requiring high-density, low-profile connections in industrial, consumer, and automotive electronics. Its shrouded design provides protection and alignment, while the detent lock ensures retention. The part is available in bulk packaging; standard package quantity is not specified in available data.
10 positions, all loaded, in 2 rows.
2.00 mm (0.079 in) pitch and row spacing.
2 A
250 V
Through Hole, Right Angle with solder termination.
-40°C to 85°C
Yes, shrouded with 4 walls and a detent lock fastening.
