| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Current Rating (Nominal @ IEC 250 VAC, 50 Hz) | |
| Current Rating (Nominal @ UL/CSA 250 VAC, 60 Hz) | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Filter Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness (@ Snap-in mounting) | |
| Pin Temperature | |
| Protection Class | |
| Short Circuit Capacity (Nominal @ In < 3 A @ 240 VAC) | |
| Switch Features | |
| Termination | |
| Voltage Rating | |
| panel_thickness (Maximum @ Screw mounting) |

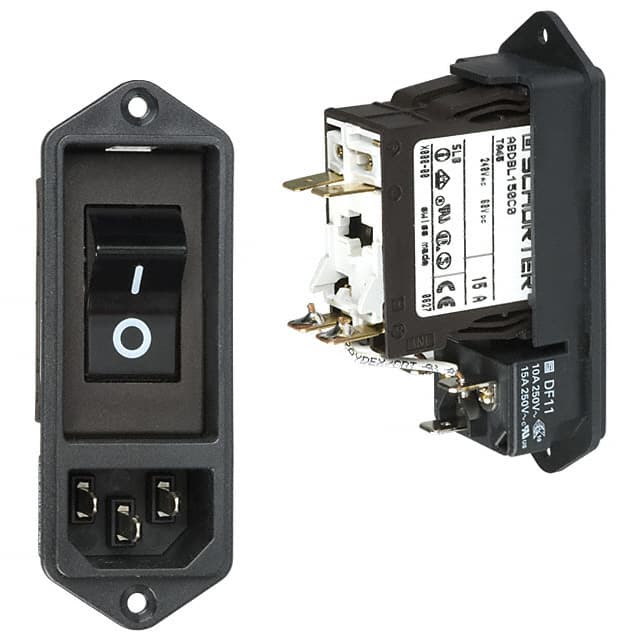

The Schurter DF11.1089.0010.01 is a power entry module combining an IEC 320-C14 appliance inlet with a recessed circuit breaker and rocker switch. It is part of the DF11 series and is designed for panel mount installation with either screw-on or snap-in mounting options. The module provides two functions: power input and overcurrent protection, eliminating the need for a separate circuit breaker. Electrical ratings are 10A at 250VAC per IEC and 15A at 250VAC per UL/CSA. The circuit breaker is a TA45 2-pole type, compliant with IEC/EN 60934 and UL 1077 standards. Dielectric strength is >2.5 kVAC between L-N and >3 kVAC between L/N-PE. The housing is thermoplastic with UL94 V-0 flammability rating, and front-side IP40 protection. Termination is via quick connect terminals (6.3 x 0.8 mm). Operating temperature range is -10°C to 55°C. This module is suitable for use in equipment according to IEC/UL 62368-1 and is available in versions with or without V-Lock notch for latching cordsets.
10A at 250VAC (IEC) and 15A at 250VAC (UL/CSA).
250VAC.
Panel mount with screw-on (max 8mm panel thickness) or snap-in (1, 1.5, 2, 2.5, 3mm).
No, it does not accommodate a fuse.
IEC 320-C14 appliance inlet.
No, it is an unfiltered commercial grade module.
cULus, ENEC, and compliant with IEC/EN 60934, UL 1077, CSA 22.2 no. 235.
