| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,282,020 pcs
|
1282020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | 22+21+ | On Request | On Request | |
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,874 pcs
|
1874 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
252 pcs
|
252 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Technology | |
| Termination Finish | |
| Voltage | |
| Weight |

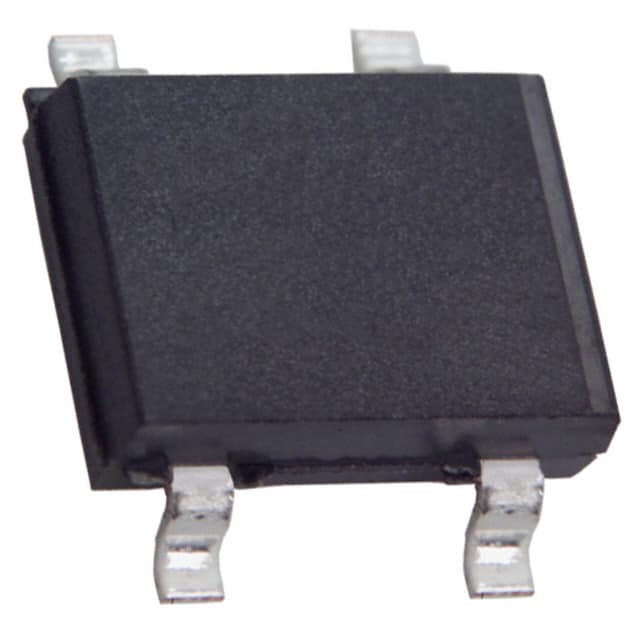

The DF10S-T is a single phase glass passivated bridge rectifier from Diodes Incorporated. It is rated for an average rectified current of 1.0A and a peak repetitive reverse voltage of 1000V. The device can handle a non-repetitive forward surge current of 50A peak (8.3 ms single half sine wave).
The rectifier is housed in a surface mount DF-S package (4-SMD, Gull Wing) with tin-plated terminals that are solderable per MIL-STD-202, Method 208. The package is molded plastic with UL 94V-0 flammability rating and weighs approximately 0.38 grams. Operating temperature range is -65°C to 150°C (junction).
The DF10S-T is RoHS3 compliant, lead-free, and halogen and antimony free (green device). Moisture sensitivity level is Level 1 per J-STD-020. It is supplied in tape and reel packaging with a standard quantity of 1500 pieces per reel.
1000V.
1.0A.
50A peak for 8.3 ms single half sine wave.
4-SMD, Gull Wing (DF-S).
-65°C to 150°C (junction).
Yes, RoHS3 compliant.
MSL Level 1 – Unlimited.
