Mfr Part #:

DF10S

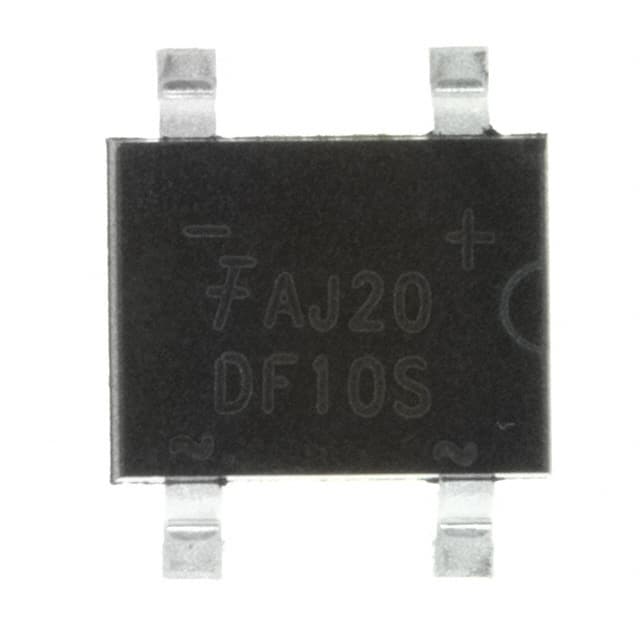

The DF10S is a 1.0A, 1000V surface mount bridge rectifier from On Semiconductor. It features a glass passivated die construction and is housed in a DF-S package.

✓ Total Stock: 132,037 pcs

DF10S Available from 7 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	122,790 pcs On Request	122790 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	4,136 pcs On Request	4136 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	4,020 pcs On Request	4020 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	583 pcs On Request	583 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	484 pcs On Request	484 pcs	On Request	1	On Request	On Request	502	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Emiteli ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DF10S Description

Short technical summary and product information.

The DF10S is a single phase bridge rectifier designed for surface mount applications. It has a peak repetitive reverse voltage of 1000V and an average forward rectified current of 1.0A at +40°C.

It can handle non-repetitive peak forward surge current up to 50A (8.3ms single half sine wave). The forward voltage is 1V maximum at 10A. Operating temperature range is -65°C to 150°C.

The device comes in a 4-SMD gull wing package (DF-S) with molded plastic UL 94V-0 material. Terminals are tin finish. It is RoHS3 compliant, REACH unaffected, and MSL Level 1.

Suitable for general purpose AC/DC bridge rectification in power supplies, adapters, and other applications requiring a compact surface mount bridge rectifier.

DF10S Quick Information

Product Type: Bridge Rectifier

Canonical Name: DF10S Bridge Rectifier, Single Phase, 1.0A, 1000V, DF-S Package

Subcategory: Bridge Rectifiers

DF10S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Finish

DF10S Features

Glass passivated die construction.
Rated for 1000V reverse voltage.
1.0A average forward current.
50A surge current capability.
Surface mount DF-S package.

DF10S Applications

Used in AC/DC power supplies.
Ideal for adapter circuits.
Suitable for general rectification.
Compact surface mount design.

DF10S FAQs

7 frequently asked questions generated from this part’s specifications.

What is the peak repetitive reverse voltage of the DF10S?

1000V.

What is the average forward rectified current?

1.0A at TA = +40°C.

What is the forward voltage drop?

1V maximum at 10A.

What package is the DF10S available in?

4-SMD gull wing (DF-S).

What is the non-repetitive peak forward surge current?

50A for 8.3ms single half sine wave.

What is the operating temperature range?

-65°C to 150°C.

Is the DF10S RoHS compliant?

Yes, RoHS3 compliant.

Category	Diodes - Bridge Rectifiers
Manufacturer Name	On Semiconductor
Current	1 V
Diode Type	Single Phase
Forward Voltage	1 V
Halogen Free	Halogen and Antimony Free (Green)
Mounting Type	Surface Mount
Operating Temperature	-65°C ~ 150°C
Supplier Device Package	DF-S
Technology	Standard
Voltage	1 kV
Weight	0.38 g
