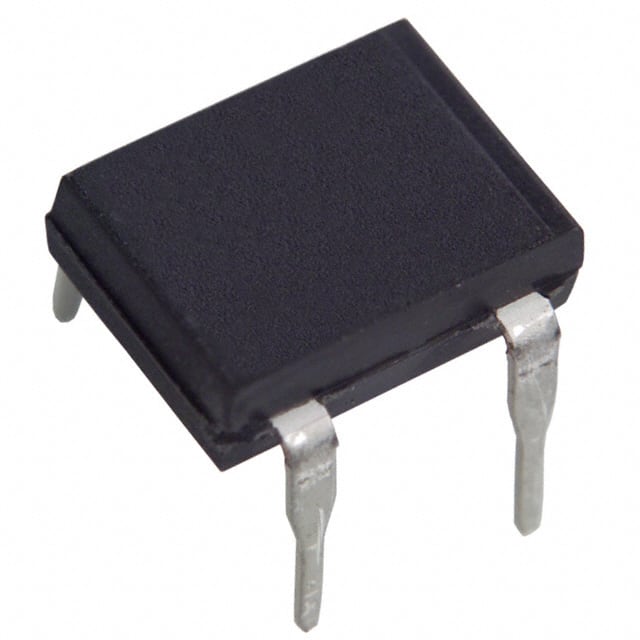

DF10M DF10M is a 1A, 1000V single-phase bridge rectifier by Diodes Incorporated. It features a glass passivated die construction and a surge overload rating of 50A.
Mfr Part #:

DF10M

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
DF10M is a 1A, 1000V single-phase bridge rectifier by Diodes Incorporated. It features a glass passivated die construction and a surge overload rating of 50A.
✓ Total Stock: 50 pcs

DF10M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF10M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Forward Voltage
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Technology
Voltage
Weight
View Similar Products (0)

DF10M Description

Short technical summary and product information.

The DF10M is a single-phase bridge rectifier from Diodes Incorporated, rated for 1000V peak repetitive reverse voltage and 1A average rectified output current (derate 20% for capacitive load). It features a glass passivated die construction for low forward voltage drop (1.1V max at 1A) and high current capability.



Electrical characteristics include a surge overload rating of 50A peak (8.3ms half sine-wave), I2t rating of 10.4 A²s. Reverse current is 10µA at 25°C and 500µA at 125°C. Typical capacitance is 25pF per element.



The DF10M is housed in a DF-M molded plastic case (UL 94V-0), through-hole mounting with a 4-EDIP (0.300", 7.62mm) package. Tin-plated leads are solderable per MIL-STD-202. Weight is 0.38 grams. Thermal resistance (junction to ambient) is 40°C/W. Operating and storage temperature range is -65°C to 150°C.



Compliance includes RoHS3, lead-free finish, MSL Level 1, and UL recognized under File E94661. Suitable for printed circuit board power supply applications.

DF10M Quick Information

Product Type: Bridge Rectifier
Canonical Name: DF10M Single Phase Bridge Rectifier, 1000V, 1A
Subcategory: Single Phase Bridge Rectifier

DF10M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 per J-STD-020C
REACH Status: REACH Unaffected
Lead Free: Lead Free Finish

DF10M Features

  • Glass passivated die construction for reliability.
  • Rated for 1000V peak repetitive reverse voltage.
  • 1.0A average rectified output current.
  • 50A non-repetitive peak forward surge current.
  • Through-hole DFM package with tin-plated leads.

DF10M Applications

  • Designed for printed circuit board power supplies.
  • Suitable for AC-to-DC bridge rectification.
  • Used in general-purpose power conversion circuits.
  • For resistive or inductive loads; derate for capacitive.

DF10M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the DF10M?

1000V.

What is the average rectified output current?

1.0A (derate 20% for capacitive load).

What is the forward voltage drop at 1A?

Maximum 1.1V per element.

What package does the DF10M come in?

DF-M (4-EDIP, 0.300", 7.62mm) through-hole.

What is the non-repetitive peak forward surge current?

50A for 8.3ms.

What is the operating temperature range?

-65°C to 150°C.

Is the DF10M RoHS compliant?

Yes, RoHS3 compliant with lead-free finish.
