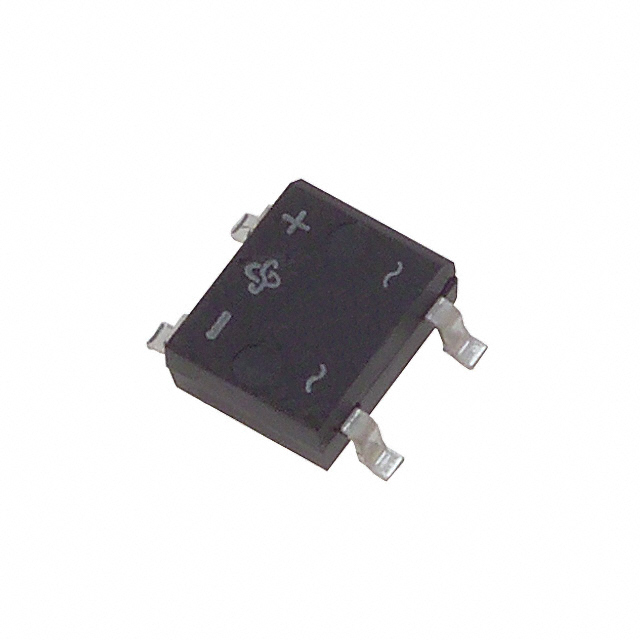

DF08S-E3/77 Vishay DF08S-E3/77 is a single-phase bridge rectifier rated for 800V repetitive peak reverse voltage and 1A average forward current. It comes in a surface-mount DFS package with gull wing leads.
Mfr Part #:

DF08S-E3/77

Available from 5 distributors
Mfr Name: Vishay
Vishay
Vishay DF08S-E3/77 is a single-phase bridge rectifier rated for 800V repetitive peak reverse voltage and 1A average forward current. It comes in a surface-mount DFS package with gull wing leads.
✓ Total Stock: 47,898 pcs

DF08S-E3/77 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF08S-E3/77 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Supplier Device Package
Technology
Termination Finish
Voltage
View Similar Products (0)

DF08S-E3/77 Description

Short technical summary and product information.

The Vishay DF08S-E3/77 is a miniature glass passivated single-phase surface-mount bridge rectifier designed for general purpose AC/DC full wave rectification. It features a maximum repetitive peak reverse voltage (VRRM) of 800V and an average forward current (IF(AV)) of 1A. The device can handle a peak forward surge current (IFSM) of 50A, making it suitable for applications with high inrush currents.



Typical forward voltage is 1.1V at 1A forward current, and maximum reverse leakage current is 5µA at 800V. The junction temperature range is -55°C to 150°C. The rectifier is housed in a DFS case (4-SMD, gull wing) with matte tin plated leads, and the molding compound meets UL 94 V-0 flammability rating.



The DF08S-E3/77 is RoHS-compliant (E3 suffix) and meets MSL level 1 per J-STD-020. It is suitable for automated placement and is commonly used in SMPS, lighting ballasts, adapters, battery chargers, home appliances, office equipment, and telecommunications.

DF08S-E3/77 Quick Information

Product Type: Bridge Rectifier
Canonical Name: Vishay DF08S-E3/77 Single-Phase Bridge Rectifier, 800V, 1A, DFS Package
Subcategory: Bridge Rectifiers

DF08S-E3/77 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF08S-E3/77 Features

  • 800V maximum repetitive peak reverse voltage.
  • 1A average forward current rating.
  • 50A peak forward surge current capability.
  • Surface mount DFS package with gull wing leads.
  • RoHS compliant and MSL level 1 rated.

DF08S-E3/77 Applications

  • AC/DC bridge rectification in SMPS designs.
  • Used in lighting ballast and adapter circuits.
  • Suitable for battery charger applications.
  • Ideal for home appliance power supplies.
  • Used in office equipment and telecom systems.

DF08S-E3/77 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage (VRRM) of the DF08S-E3/77?

The maximum repetitive peak reverse voltage (VRRM) is 800V.

What is the average forward current rating of this bridge rectifier?

The average forward current (IF(AV)) is 1A.

What is the peak forward surge current capability?

The peak forward surge current (IFSM) is 50A.

What is the forward voltage drop at rated current?

The typical forward voltage (VF) is 1.1V at IF = 1.0A.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

What package does the DF08S-E3/77 come in?

It comes in a surface mount DFS package (4-SMD, gull wing).

Is the DF08S-E3/77 RoHS compliant?

Yes, the E3 suffix indicates RoHS-compliant commercial grade.
