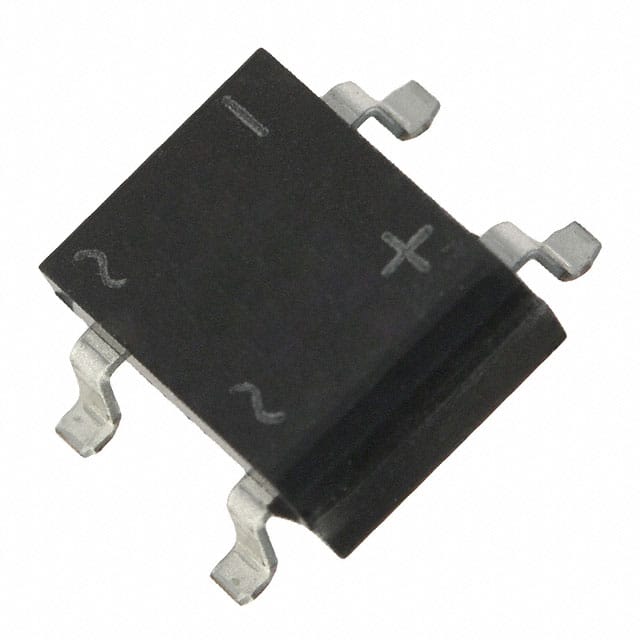

DF08S The DF08S is a single phase bridge rectifier from onsemi with 800V peak repetitive reverse voltage and 1.5A average rectified forward current. It is housed in a surface mount 4-SDIP package.
Mfr Part #:

DF08S

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The DF08S is a single phase bridge rectifier from onsemi with 800V peak repetitive reverse voltage and 1.5A average rectified forward current. It is housed in a surface mount 4-SDIP package.
✓ Total Stock: 26,467 pcs

DF08S Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
25,189 pcs
On Request
25189 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
778 pcs
On Request
778 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF08S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Technology
Voltage
View Similar Products (0)

DF08S Description

Short technical summary and product information.

The DF08S is a single phase bridge rectifier designed for general purpose AC to DC conversion. It features a maximum repetitive reverse voltage of 800V and an average rectified forward current of 1.5A at 40°C. The device offers a non-repetitive peak forward surge current of 50A and a maximum forward voltage of 1.1V at 1.5A. The bridge rectifier utilizes standard technology with glass passivated junctions for reliability. It is surface mounted in a 4-SDIP (SDIP-4 GW) package with gull wing leads. The operating temperature range is -55°C to 150°C junction temperature. The device is RoHS3 compliant and lead-free. Typical applications include power supply rectification where high surge capability and efficiency are required. The DF08S is part of the DFxS family from onsemi.

DF08S Quick Information

Product Type: Bridge Rectifier
Series: DFxS
Canonical Name: DF08S Bridge Rectifier
Subcategory: Bridge Rectifiers

DF08S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

DF08S Features

  • Single phase bridge rectifier design.
  • 800V peak repetitive reverse voltage.
  • 1.5A average rectified forward current.
  • 50A non-repetitive peak surge current.
  • Surface mount 4-SDIP package.

DF08S Applications

  • Used in AC to DC power supply rectification.
  • Suitable for high surge current applications.
  • Ideal for surface mount assembly.
  • Common in power adapters and chargers.

DF08S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the DF08S?

800V.

What is the average rectified forward current of the DF08S?

1.5A at 40°C.

What is the forward voltage of the DF08S?

Maximum 1.1V at 1.5A, typical 0.94V at 1.5A and 25°C.

What is the package type of the DF08S?

Surface mount 4-SDIP (SDIP-4 GW) with gull wing leads.

What is the non-repetitive peak forward surge current of the DF08S?

50A at 8.3ms single half-sine wave.

What is the operating temperature range of the DF08S?

-55°C to 150°C junction temperature.

Is the DF08S RoHS compliant?

Yes, RoHS3 compliant and lead-free.
