DF02S Single phase bridge rectifier with 200V repetitive peak reverse voltage and 1.5A average rectified forward current. Surface mount DF-S package.
Mfr Part #:

DF02S

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
Single phase bridge rectifier with 200V repetitive peak reverse voltage and 1.5A average rectified forward current. Surface mount DF-S package.
✓ Total Stock: 13,257 pcs

DF02S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,257 pcs
On Request
1257 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF02S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Halogen Free
Mounting Type
Operating Temperature
Package / Case
Power Dissipation
Supplier Device Package
Technology
Voltage
View Similar Products (0)

DF02S Description

Short technical summary and product information.

The DF02S is a single phase bridge rectifier from On Semiconductor's DFxS family. It features a repetitive peak reverse voltage of 200V and an average rectified forward current of 1.5A. The device offers a non-repetitive peak forward surge current of 50A (8.3 ms single half-sine wave) and a maximum forward voltage of 1.1V at 1.5A and 25°C, with a typical forward voltage of 0.94V. Reverse leakage current is 10 µA at rated DC reverse voltage.

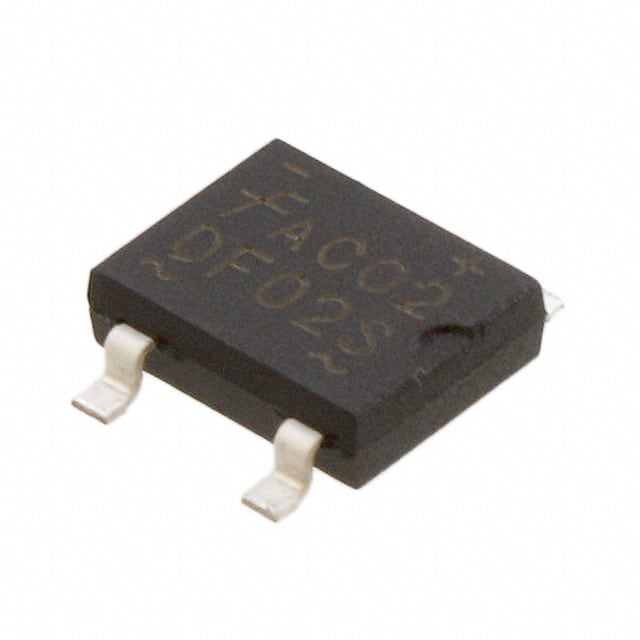

The DF02S is designed for surface mount assembly in a 4-SMD gull wing package (DF-S). It operates over a junction temperature range of -65°C to 150°C and has a power dissipation of 3.1W. The device is RoHS3 compliant, lead free, and uses a halogen-free green molding compound per IEC61249. It is UL certified (E258596).

DF02S Quick Information

Product Type: Bridge Rectifier
Series: DF02S
Canonical Name: DF02S Bridge Rectifier
Subcategory: Single Phase Bridge Rectifier

DF02S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

DF02S Features

  • 200V repetitive peak reverse voltage.
  • 1.5A average rectified forward current.
  • 50A non-repetitive peak surge current.
  • Surface mount DF-S package.
  • RoHS3 compliant and lead free.

DF02S Applications

  • Used in AC to DC power conversion.
  • Ideal for power supply input rectification.
  • Suitable for high surge current applications.
  • Designed for surface mount assembly.

DF02S FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage of the DF02S?

200 V.

What is the average rectified forward current rating?

1.5 A.

What is the forward voltage at rated current?

Maximum 1.1 V at 1.5 A and 25°C, typical 0.94 V.

What is the surge current rating?

50 A non-repetitive peak forward surge current (8.3 ms half-sine wave).

What package is the DF02S available in?

4-SMD gull wing package (DF-S).

Is the DF02S RoHS compliant?

Yes, RoHS3 compliant and lead free.
