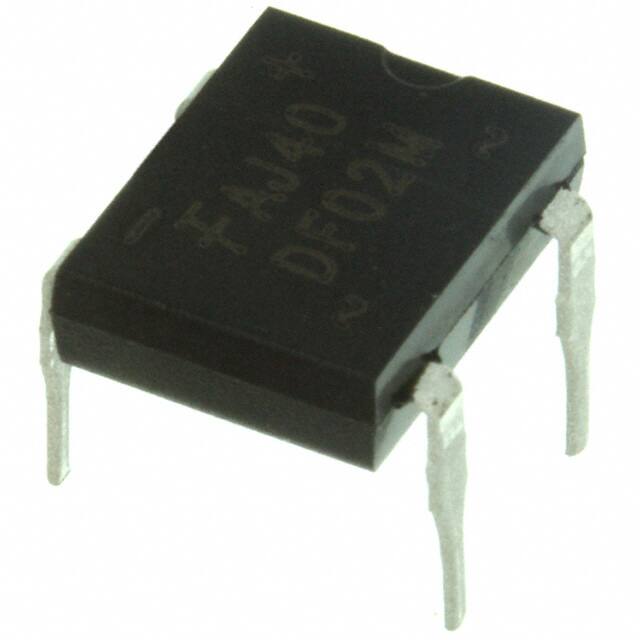

DF02M The DF02M is a 200V, 1.0A single-phase bridge rectifier in a 4-DIP through-hole package. It features glass passivated die construction and a surge rating of 50A.
Mfr Part #:

DF02M

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The DF02M is a 200V, 1.0A single-phase bridge rectifier in a 4-DIP through-hole package. It features glass passivated die construction and a surge rating of 50A.
✓ Total Stock: 8 pcs
$ Price Range: $0.29 - $0.75

DF02M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF02M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Diode Type
Forward Voltage
Lead Spacing
Mounting Type
Operating Temperature
Operating Temperature Range
Supplier Device Package
Technology
Termination Finish
Voltage
Weight
View Similar Products (0)

DF02M Description

Short technical summary and product information.

The DF02M is a single-phase bridge rectifier from Diodes Incorporated, designed for printed circuit board applications. It has a peak repetitive reverse voltage of 200V and an average rectified output current of 1.0A at 40°C ambient.



Key electrical characteristics include a forward voltage drop of 1.1V at 1.0A, a non-repetitive peak surge current of 50A, and a reverse leakage current of 10µA at 25°C. The device is built with glass passivated die construction for reliability.



The DF02M is housed in a 4-EDIP (0.300", 7.62mm) through-hole package, also known as 4-DIP. It has tin-plated leads and is RoHS compliant. The operating temperature range is -65°C to +150°C.

DF02M Quick Information

Product Type: Bridge Rectifier
Series: DF005M-DF10M
Canonical Name: DF02M 200V 1.0A Single Phase Bridge Rectifier
Subcategory: Single Phase Bridge Rectifier

DF02M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

DF02M Estimated Pricing

Qty Low High
1+ $0.75 $0.75
10+ $0.46 $0.46
25+ $0.38 $0.38
50+ $0.34 $0.34
100+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

DF02M Features

  • Glass passivated die construction.
  • Rated for 200V peak reverse voltage.
  • 1.0A average rectified output current.
  • 50A surge current capability.
  • Through-hole 4-DIP package.

DF02M Applications

  • Used in AC to DC power supplies.
  • Ideal for printed circuit board mounting.
  • Suitable for general purpose rectification.
  • Can be used in battery chargers.

DF02M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of the DF02M?

200V.

What is the average rectified output current?

1.0A at TA=40°C.

What is the forward voltage drop?

1.1V at IF=1.0A.

What is the surge current rating?

50A for 8.3ms half sine-wave.

What is the operating temperature range?

-65°C to +150°C.

What package is the DF02M available in?

4-EDIP (0.300", 7.62mm) through-hole, also known as 4-DIP.

Is the DF02M RoHS compliant?

Yes, RoHS3 compliant with lead-free finish.
