| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

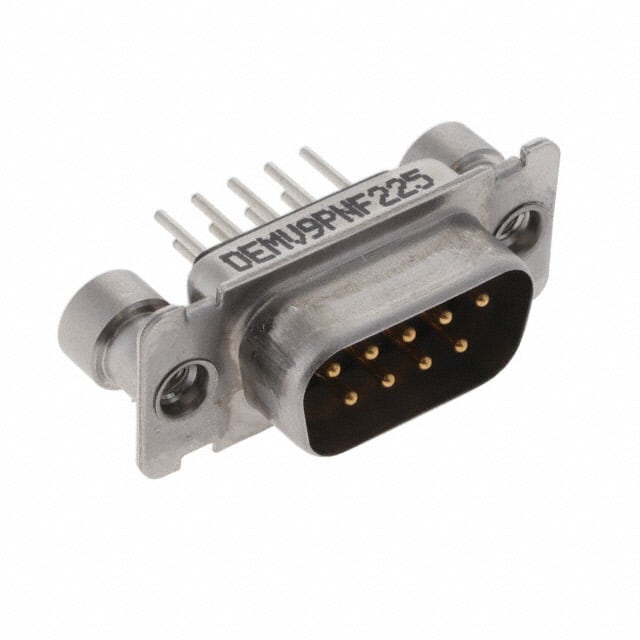

The ITT Cannon DEMV9PNF225 is a D-Sub connector assembly featuring a plug with male pins in a 9-position, 2-row configuration. It uses a DE (E) shell size and is designed for panel mount and through hole solder termination. The connector includes grounding indents and a board-side flange feature with 4-40 threaded inserts for secure mounting.
This connector is rated for a current of 7.5 A per contact and uses signal contacts with a gold finish for reliable conductivity. The shell is made of stainless steel for corrosion resistance. The insulator material has a UL94 V-0 flammability rating.
Typical applications include industrial, telecommunications, and data communication equipment where a reliable 9-pin D-Sub interface is required. The panel mount design allows for secure installation in chassis or enclosure panels.
It is a D-Sub plug connector with male pins.
It has 9 positions arranged in 2 rows.
It is a panel mount connector with through hole solder termination.
The current rating is 7.5 A per contact.
The contacts have a gold finish.
The shell is made of stainless steel.
The material flammability rating is UL94 V-0.
