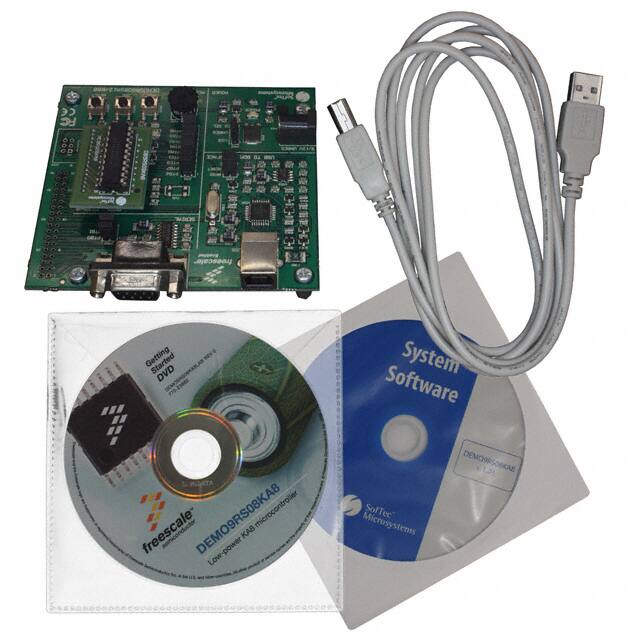

The DEMO9RS08KA8 is an evaluation platform from NXP Semiconductors designed for the MC9RS08KA8 8-bit RS08 microcontroller. The board provides socket-based mounting and includes necessary cables for quick setup and evaluation.
The utilized MCU features an 8-bit RS08 core operating at up to 20 MHz across a supply voltage range of 1.8V to 5.5V and temperature range of -40°C to 85°C. On-chip memory includes 8 KB flash and 254 bytes of RAM. The MCU integrates a 12-channel, 10-bit ADC and multiple power-saving modes including wait and stop, with wakeup from real-time interrupt, keyboard interrupt, or analog comparator.
This evaluation board is suitable for prototyping and development of embedded applications requiring low-power 8-bit processing with analog sensing capabilities. The socket mounting allows easy replacement of the MCU for testing or debugging.
The MCU operates from 1.8V to 5.5V.
The utilized MCU is rated for -40°C to 85°C.
Yes, it is marked as RoHS3 compliant.
The CPU operates at up to 20 MHz.
The MCU has 8 KB of flash memory.
The ADC is 10-bit with 12 channels.
