| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance (Max) | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Max) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Salt Spray Test Duration | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

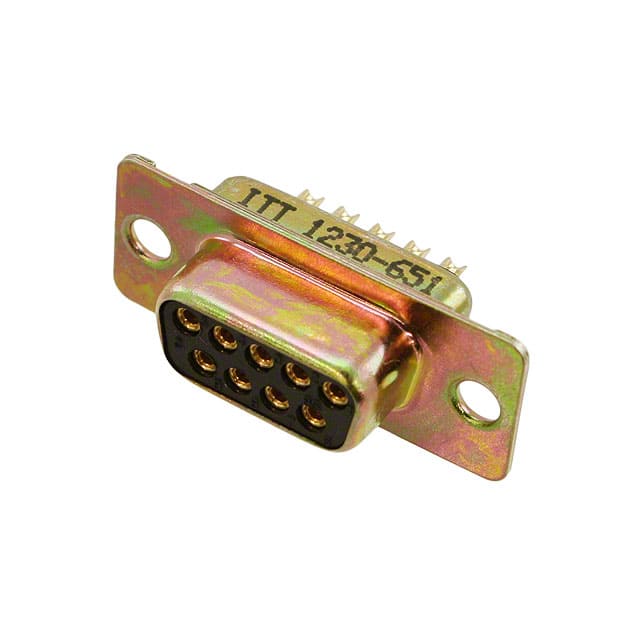

The DEMM-9S is a D-Sub receptacle from ITT Cannon featuring 9 positions arranged in 2 rows. It has a steel shell with yellow chromate plated zinc finish and gold-plated copper alloy contacts for reliable signal transmission. The connector is designed for panel mount installation with solder cup termination, making it suitable for wire connections. Electrical ratings include a maximum current of 7.5A, contact resistance of 7.5 mOhm, and dielectric withstanding voltage of 1000 VAC. The operating temperature range is -55°C to +150°C, and it can withstand 500 mating cycles. The insulator is made of black thermoplastic with UL94 V-0 flammability rating. The connector is RoHS3 and REACH unaffected compliant, with MSL level 1. This D-Sub receptacle is commonly used in industrial control, data communication, and test equipment applications.
9 positions.
7.5 A.
Panel Mount.
Solder Cup.
Gold with 50µin thickness.
-55°C to +150°C.
Steel with yellow chromate plated zinc finish.
