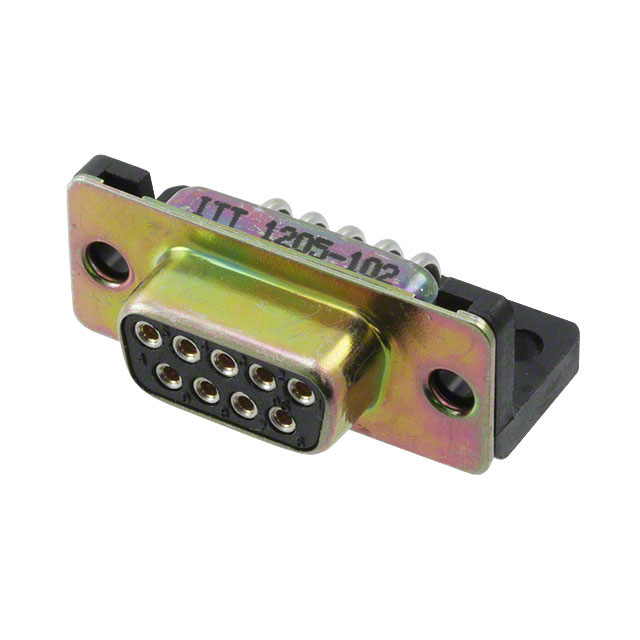

DEMAY-9S DEMAY-9S is a 9-position D-Sub receptacle from ITT Cannon. It features panel mount, crimp termination, gold plated contacts, and a current rating of 7.5A.
Mfr Part #:

DEMAY-9S

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
DEMAY-9S is a 9-position D-Sub receptacle from ITT Cannon. It features panel mount, crimp termination, gold plated contacts, and a current rating of 7.5A.
✓ Total Stock: 1 pcs

DEMAY-9S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DEMAY-9S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Flange Feature
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

DEMAY-9S Description

Short technical summary and product information.

The DEMAY-9S is a 9-position D-Sub receptacle from ITT Cannon, part of the D*MA series. It features female socket contacts arranged in 2 rows with a shell size of 1 (DE, E). The connector is designed for panel mount installation with an unthreaded flange for secure fastening. Termination is via crimp, accepting 20-24 AWG wire. The gold plated contacts provide reliable signal transmission with a current rating of 7.5A per contact. The steel shell is finished with yellow chromate zinc plating for corrosion resistance. The insulator material meets UL94 V-0 flammability standards. This connector is rated for 500 mating cycles, making it suitable for moderate-use applications. It is designed to meet MIL-DTL-24308 specifications and is commonly used in industrial, aerospace, and military environments where a robust D-Sub interconnect is required. The cross-reference part number DEMAY-9S-ND is available from DigiKey.

DEMAY-9S Quick Information

Product Type: D-Sub Receptacle
Series: D*MA
Canonical Name: DEMAY-9S D-Sub Receptacle, 9 Position, Female Sockets
Subcategory: D-Sub Connector Assemblies

DEMAY-9S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DEMAY-9S Features

  • 9-position D-Sub receptacle with female sockets.
  • Panel mount with unthreaded flange.
  • Crimp termination for 20-24 AWG wire.
  • Gold plated contacts rated for 7.5A.
  • Steel shell with yellow chromate zinc plating.

DEMAY-9S Applications

  • Ideal for industrial control systems.
  • Used in aerospace and military connectors.
  • Suitable for data communication interfaces.
  • Common in test and measurement equipment.
  • Perfect for custom cable assemblies.

DEMAY-9S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

9 positions.

What is the current rating?

7.5A per contact.

What is the mounting type?

Panel mount.

What wire gauge does the connector accept?

20-24 AWG.

How many mating cycles are rated?

500 cycles.

What is the shell material?

Steel with yellow chromate zinc plating.

What is the contact finish?

Gold.
