| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

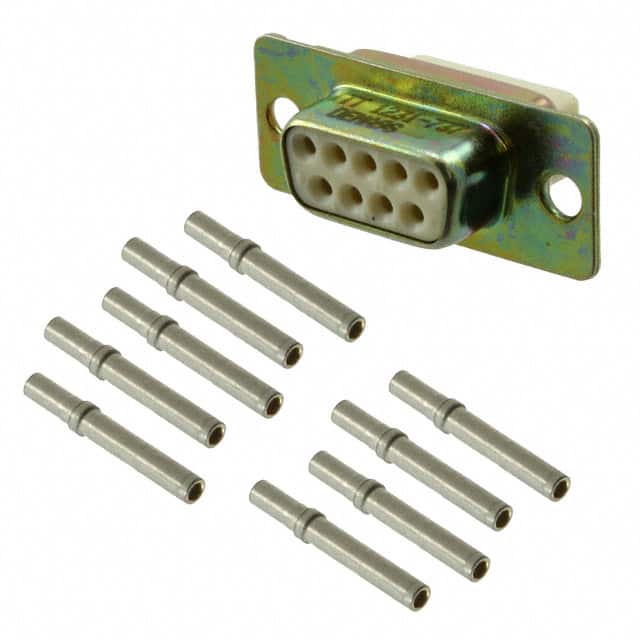

The DEMA-9S is a D-Sub receptacle connector from ITT Cannon, part of the D*MA series designed per MIL-DTL-24308 standards. It features 9 positions arranged in 2 rows of female sockets, with a shell size of 1 (DE, E) and a steel, tin-plated shell. The connector uses an unthreaded housing/shell flange for panel mounting and crimp termination for secure wire connections.
Electrical specifications include a current rating of 7.5 A per contact, and the insulator material has a flammability rating of UL94 V-0. The contacts are gold-plated signal contacts, supporting wire gauges ranging from AWG 20 to AWG 24. The connector is rated for 500 mating cycles, providing reliable performance in numerous connect-disconnect operations.
This connector is suitable for I/O applications requiring a robust, standard D-Sub interface. Its crimp termination allows for field-installable or custom cable assembly, and the panel mount design facilitates secure chassis mounting.
The DEMA-9S has 9 positions arranged in 2 rows.
The current rating is 7.5 A per contact.
It accepts wire gauges AWG 20 to AWG 24.
The DEMA-9S is designed for panel mount with an unthreaded housing/shell flange.
Yes, it is RoHS3 compliant (unverified).
It is rated for 500 mating cycles.
