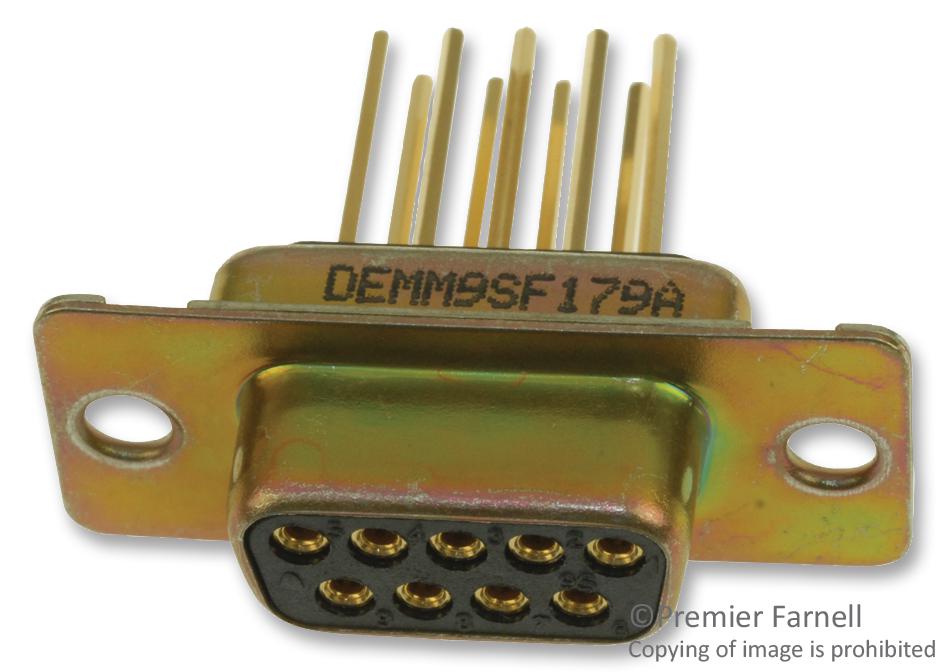

DEM9SF179A ITT Cannon DEM9SF179A is a 9-position D-Sub receptacle with female sockets, designed for panel mount and wire wrap termination.
Mfr Part #:

DEM9SF179A

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
ITT Cannon DEM9SF179A is a 9-position D-Sub receptacle with female sockets, designed for panel mount and wire wrap termination.
✓ Total Stock: 1 pcs

DEM9SF179A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DEM9SF179A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Material
Contact Resistance
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Flange Feature
Gender
Hardware
Insulator Color
Insulator Material
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Shell Finish
Shell Material
Shell Material, Finish
Shell Size, Connector Layout
Termination
Wire Gauge
View Similar Products (0)

DEM9SF179A Description

Short technical summary and product information.

The ITT Cannon DEM9SF179A is a 9-position D-Sub receptacle (female socket) from the D*M series, designed for reliable signal connections in demanding environments. It features a steel shell with tin finish and a black thermoplastic insulator rated UL94 V-0 for flammability resistance.



Key electrical specifications include a maximum current rating of 7.5 A per contact, maximum contact resistance of 7.5 mOhm, and a dielectric withstanding voltage of 1000 VAC at sea level. The operating temperature range is -55°C to +125°C, and the connector is rated for a minimum of 200 mating cycles.



The connector uses wire wrap termination and is designed for panel mount with through-hole hardware (0.120" / 3.05mm). Contacts are copper alloy with gold over nickel finish. It accepts wire gauges from 20 AWG to 28 AWG and has a salt spray test rating of 20 hours.

DEM9SF179A Quick Information

Product Type: D-Sub Connector Assembly
Series: D*M
Canonical Name: ITT Cannon D-Sub Receptacle, 9 Position, Female Sockets, Panel Mount, Wire Wrap, DE-9
Subcategory: Receptacle, Female Sockets

DEM9SF179A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DEM9SF179A Features

  • 9-position D-Sub receptacle with female sockets.
  • Panel mount with wire wrap termination.
  • Gold over nickel plated copper alloy contacts.
  • Rated for 7.5 A maximum current per contact.
  • UL94 V-0 flammability rated insulator.

DEM9SF179A Applications

  • Used in industrial control and automation systems.
  • Suitable for data communication and signal interfaces.
  • Ideal for rack-mount and panel-mount equipment.
  • Common in test and measurement instrumentation.

DEM9SF179A FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the DEM9SF179A have?

The DEM9SF179A has 9 positions arranged in 2 rows.

What is the current rating of this connector?

The maximum current rating is 7.5 A per contact.

What is the mounting type for the DEM9SF179A?

It is designed for panel mount with through-hole hardware (0.120" / 3.05mm).

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What termination method does this connector use?

It uses wire wrap termination.
