| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Contact Type (Solder Pot) | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Salt Spray Test | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

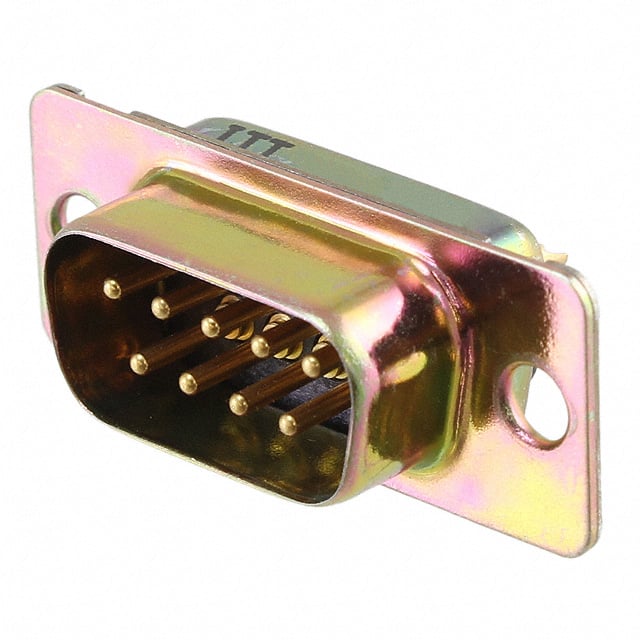

The ITT Cannon DEM-9P is a D-Sub plug connector from the D*M series, offering 9 positions arranged in 2 rows. It features male pins with solder pot contacts and is designed for panel mount applications with solder cup termination. The connector is built with a steel shell having a yellow chromate over zinc finish and a black PCT thermoplastic insulator rated UL94 V-0.
Electrically, the DEM-9P is rated for a current of 7.5 A with a maximum contact resistance of 7.5 mOhm. It can withstand 1000 VAC dielectric at sea level and operates over a temperature range of -55°C to +125°C. The connector supports wire gauges from 20 to 28 AWG.
Mechanically, the contacts are made of copper alloy with a gold over nickel finish on the mating area. The connector is rated for 200 mating cycles and passes a 20-hour salt spray test. The flange feature is an unthreaded housing/shell for panel mounting, with hardware including a 0.120 inch through hole.
This D-Sub plug is suitable for industrial control, data communication, and instrumentation applications requiring reliable signal connections in a panel-mount form factor.
9 positions.
7.5 A.
Panel mount.
Solder cup.
Gold over nickel on the mating area, with overall gold plating.
-55°C to +125°C.
20-28 AWG.
