| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Filter Type | |
| Frequency | |
| Height (Max) | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Ripple | |
| Width |

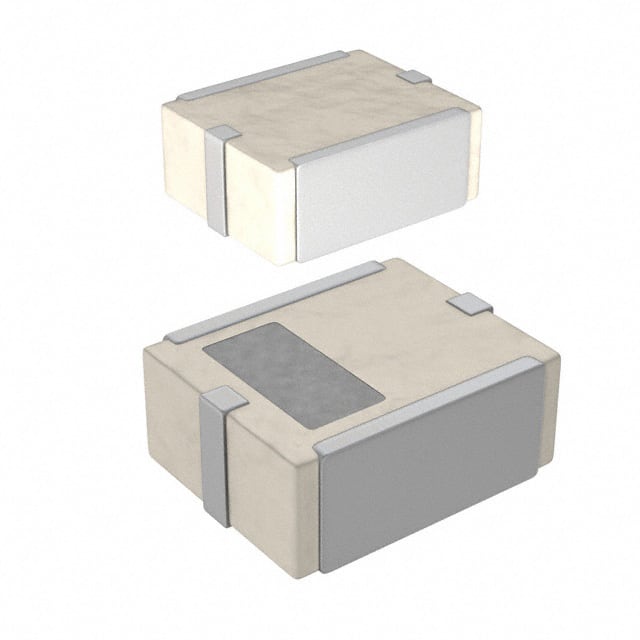

The TDK DEA252593BT-2074A3 is a surface mount band pass RF filter designed for high-frequency applications. It operates at a center frequency of 2.593 GHz with a bandwidth of 194 MHz, providing an insertion loss of 1.7 dB and a ripple of 0.2 dB.
This filter is housed in a compact 1008 (2520 Metric) package with 4 PC pads, measuring 2.50 mm x 2.00 mm with a maximum height of 1.00 mm. The surface mount design enables automated assembly and is suitable for space-constrained designs.
Typical applications include RF signal filtering in wireless communication systems where precise frequency selection is required. The band pass characteristic allows the desired signal to pass while attenuating out-of-band frequencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.82 | $0.82 |
| 10+ | $0.67 | $0.67 |
| 25+ | $0.62 | $0.62 |
| 50+ | $0.58 | $0.58 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.50 | $0.50 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.41 | $0.41 |
| 4,000+ | $0.38 | $0.38 |
| 6,000+ | $0.37 | $0.37 |
| 10,000+ | $0.35 | $0.35 |
| 14,000+ | $0.34 | $0.34 |
| 20,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.593 GHz.
194 MHz.
1.7 dB.
0.2 dB.
1008 (2520 Metric), 4 PC Pad.
RoHS3 Compliant (unverified).
Surface Mount.
