| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,798 pcs
|
2798 pcs | On Request | 1 | On Request | On Request | 1943+ | On Request | On Request | |
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Filter Type | |
| Frequency | |
| Height (Max) | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Width |

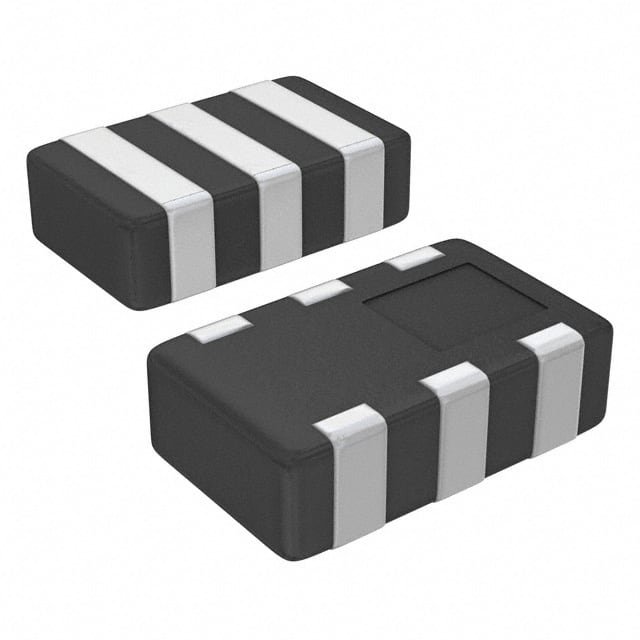

The TDK DEA202484HT-8002A1 is a high pass RF filter designed for signal conditioning in RF applications. It features a center frequency of 2.442 GHz with a bandwidth of 84 MHz, providing effective filtering for the 2.4 GHz ISM band. The insertion loss is typically 0.65 dB, minimizing signal attenuation.
This filter is housed in a compact 0805 (2012 Metric) surface mount package with 6 PC pads, measuring 2.00 mm by 1.25 mm with a maximum height of 1.10 mm. The surface mount design enables automated assembly and space-efficient integration into modern RF circuits.
Typical applications include wireless communication systems, transceiver front-ends, and harmonic rejection filters. The component is designed for high-frequency operation and offers reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.26 | $0.26 |
| 25+ | $0.24 | $0.24 |
| 50+ | $0.22 | $0.22 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.19 | $0.19 |
| 2,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a high pass filter.
The center frequency is 2.442 GHz.
The bandwidth is 84 MHz.
The insertion loss is 0.65 dB.
The package is 0805 (2012 Metric) with 6 PC pads.
It is listed as RoHS3 compliant, but this is unverified and should be confirmed from official documentation.
It is surface mount.
