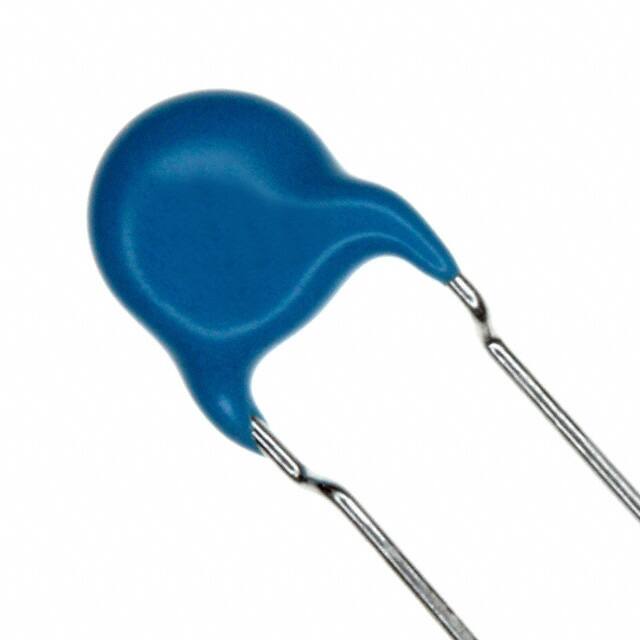

DEA1X3D470JA2B 47 pF, 2000V rated, ±5% tolerance, SL temperature coefficient ceramic disc capacitor. Through hole radial package with formed leads.
Mfr Part #:

DEA1X3D470JA2B

Available from 1 distributors
Mfr Name: Murata
Murata
47 pF, 2000V rated, ±5% tolerance, SL temperature coefficient ceramic disc capacitor. Through hole radial package with formed leads.
✓ Total Stock: 56 pcs

DEA1X3D470JA2B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
56 pcs
On Request
56 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DEA1X3D470JA2B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Diameter
Features
Height
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Package / Case
Rated Voltage
Temperature Coefficient
Tolerance
Voltage
View Similar Products (0)

DEA1X3D470JA2B Description

Short technical summary and product information.

The Murata DEA1X3D470JA2B is a high voltage ceramic disc capacitor from the DEA series. It offers a capacitance of 47 pF with a rated voltage of 2000V (2kV) and a tolerance of ±5%. The component features an SL temperature coefficient and is designed for general purpose applications.



This capacitor is housed in a radial, disc package with a diameter of 6.00mm and a height of 9.00mm. It has a lead spacing of 5.00mm and formed leads for through hole mounting. The operating temperature range is -25°C to 125°C.



Typical applications include high voltage circuits where stable capacitance and reliable performance are required. The DEA series is known for its Class 1 dielectric characteristics, ensuring low dissipation factor and stable operation over temperature.

DEA1X3D470JA2B Quick Information

Product Type: Ceramic Disc Capacitor
Series: DEA
Canonical Name: Murata DEA Series 47 pF 2000V SL Ceramic Disc Capacitor
Subcategory: High Voltage Ceramic Capacitor

DEA1X3D470JA2B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DEA1X3D470JA2B Features

  • 47 pF capacitance with ±5% tolerance.
  • Rated for 2000V DC operation.
  • SL temperature coefficient ceramic dielectric.
  • Through hole radial disc package.
  • Operating temperature range -25°C to 125°C.

DEA1X3D470JA2B Applications

  • Used in high voltage power supply circuits.
  • Suitable for snubber and coupling applications.
  • Ideal for general purpose high voltage filtering.
  • Employed in industrial and consumer electronics.

DEA1X3D470JA2B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of DEA1X3D470JA2B?

47 pF.

What is the rated voltage of this capacitor?

2000V (2kV).

What is the tolerance of DEA1X3D470JA2B?

±5%.

What is the temperature coefficient?

SL.

What is the package type?

Radial, Disc.

What is the operating temperature range?

-25°C to 125°C.

What is the lead spacing?

5.00mm (0.197").
