| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

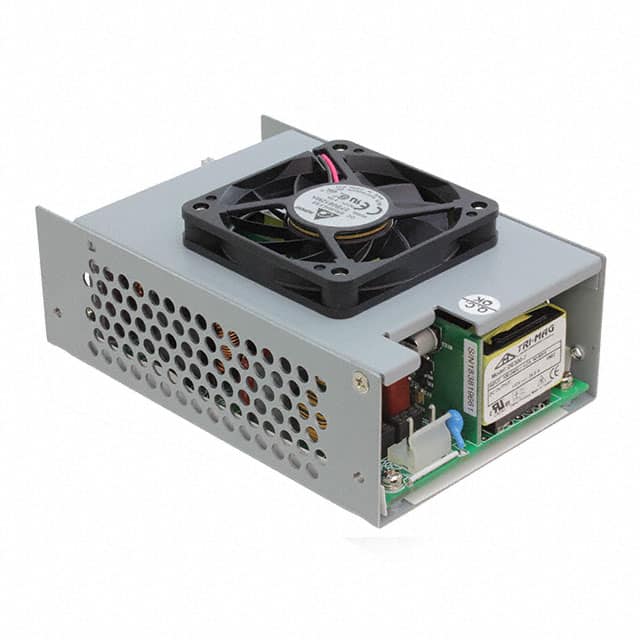

The Tri-Mag, LLC DE300-7 is a 300 Watt enclosed AC/DC power supply designed for industrial and commercial ITE applications. It operates with a universal input voltage range of 90 to 264 VAC and provides a stable 12V DC output.
This power supply boasts a high efficiency of 91% and includes Active Power Factor Correction (PFC) for improved power utilization. Its compact dimensions of 5.00" x 3.30" x 2.09" (127.0mm x 83.8mm x 53.0mm) allow for flexible integration into various systems. The unit is chassis mounted and features forced air cooling for reliable operation.
Key features include a low no-load input power of less than 0.5W, auto-recovery overload protection, and latch-off overvoltage protection. The DE300-7 complies with numerous safety and EMI/EMS standards, including UL 60950-1, EN 60950-1, FCC Class B, and various EN 61000 series standards, making it suitable for demanding environments.
+12V
25A
90 ~ 264 VAC
300W
-20°C ~ 65°C
UL 60950-1, EN 60950-1, ANSI/AAMI ES60601-1, EN 60601-1
FCC Class B, EN 61000-3-3
