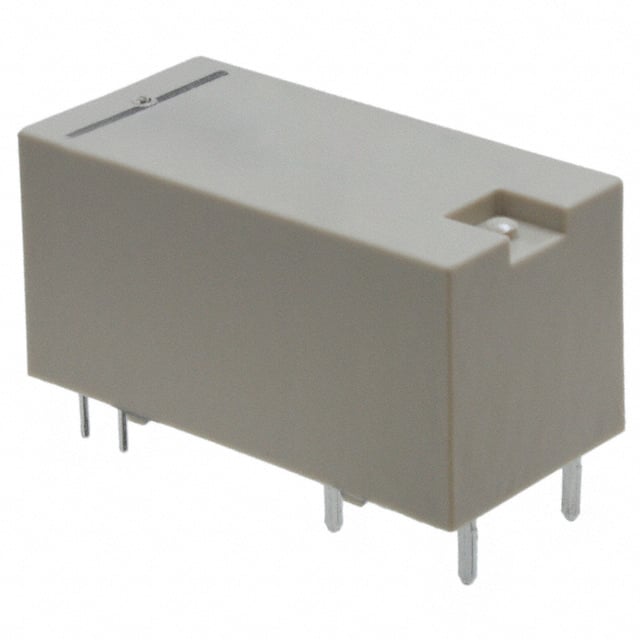

DE1A1B-L2-24V The Panasonic DE1A1B-L2-24V is a latching dual coil general purpose power relay. It offers a contact rating of 8A at 250VAC/30VDC and a coil voltage of 24VDC.
Mfr Part #:

DE1A1B-L2-24V

Available from 3 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic DE1A1B-L2-24V is a latching dual coil general purpose power relay. It offers a contact rating of 8A at 250VAC/30VDC and a coil voltage of 24VDC.
✓ Total Stock: 100,020 pcs
$ Price Range: $2.00

DE1A1B-L2-24V Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DE1A1B-L2-24V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Ambient Temperature
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Mounting Type
Must Operate Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Temperature Rise
Termination Style
View Similar Products (0)

DE1A1B-L2-24V Description

Short technical summary and product information.

This Panasonic DE1A1B-L2-24V is a general purpose power relay designed for reliable switching applications. It features a latching dual coil configuration and a DPST-NO/NC contact form.



The relay has a contact rating of 8A at 250VAC or 30VDC, with a maximum switching power of 2,500 VA or 300W. The coil operates at 24VDC with a current draw of 8.3 mA. Key electrical specifications include an operate time of 10ms and a release time of 5ms.



Designed for through-hole mounting with PC pin termination, this relay operates within an ambient temperature range of -40°C to 70°C. Its compact size of 12.5(W) × 25.0(L) × 12.5(H) mm makes it suitable for space-constrained applications. The contact material is Silver Tin Oxide (AgSnO2).



Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The relay meets European safety standards (VDE0700 and VDE0631) and is UL/CSA, VDE approved.

DE1A1B-L2-24V Quick Information

Product Type: Power Relay
Canonical Name: Panasonic Electronic Components DE1A1B-L2-24V Latching Dual Coil General Purpose Relay
Subcategory: General Purpose Relay

DE1A1B-L2-24V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DE1A1B-L2-24V Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

DE1A1B-L2-24V Features

  • Latching dual coil general purpose relay.
  • 8A contact rating at 250VAC/30VDC.
  • 24VDC coil voltage with low current draw.
  • Compact size for space-saving designs.
  • Operates from -40°C to 70°C ambient.

DE1A1B-L2-24V Applications

  • Suitable for general purpose switching.
  • Ideal for PCB mounted applications.
  • Used in control systems requiring latching.
  • Designed for reliable power switching.

DE1A1B-L2-24V FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating of the DE1A1B-L2-24V relay?

The relay has a nominal switching capacity of 10A at 250V AC and 10A at 30V DC. The maximum switching current is 10A (16A)*.

What is the coil voltage for the DE1A1B-L2-24V relay?

The coil voltage is 24VDC.

What is the operating temperature range for this relay?

The operating temperature range is -40°C to 70°C.

What type of contact form does the DE1A1B-L2-24V have?

It has a DPST-NO/NC (1 Form A, 1 Form B) contact form.

What is the operate and release time of this relay?

The operate time is a maximum of 10ms (typ. 5ms) and the release time is a maximum of 5ms (typ. 2ms).
