| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

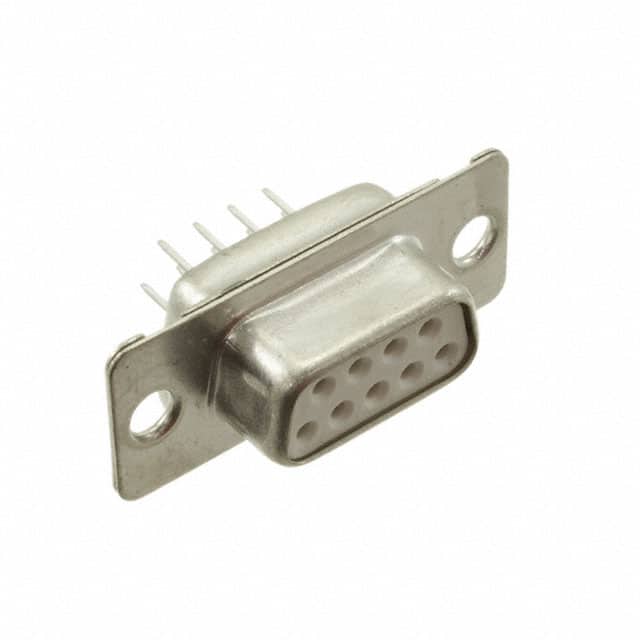

This D-Sub receptacle from Amphenol ICC is a standard DE-9 connector with 9 female socket contacts arranged in 2 rows. It features a through hole mounting style with solder termination for reliable PCB attachment. The contacts are gold flash plated, ensuring good signal conductivity and corrosion resistance. The shell is made of steel with tin plating, providing durability and EMI shielding.
Rated at 5A per contact, this connector is suitable for signal-level applications in data communication, computer peripherals, and industrial control interfaces. The shell size is 1 (DE, E), and the flange feature is housing/shell unthreaded for panel mounting. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life).
Designed for vertical orientation, the DE09S364TLF is a reliable choice for RS-232 serial ports, test equipment, and other D-Sub interface applications. Its compact size and standard pinout facilitate easy integration into existing designs.
9 positions arranged in 2 rows.
5A per contact.
Through hole, solder termination.
Gold flash plated.
Shell size 1 (DE, E).
D-Sub receptacle, female sockets.
Solder termination.
