| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

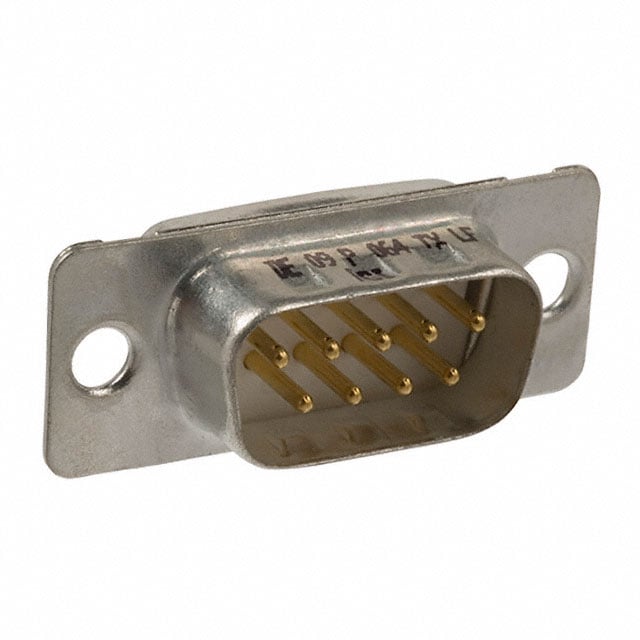

The DE09P064TXLF is a D-Sub connector assembly from Amphenol ICC, configured as a plug with 9 male pins arranged in 2 rows. It features a shell size of 1 (DE, E) and is designed for signal contact applications. The connector uses solder cup termination, making it suitable for custom cable assembly.
The mounting type is free hanging (in-line), allowing flexible installation in cable harnesses. The shell is constructed from steel with a tin plating, providing durability and EMI shielding. Grounding indents are included for improved grounding performance. The insulator material has a flammability rating of UL94 V-0, ensuring fire safety.
Electrically, each contact is rated for 5A, with a gold flash contact finish for reliable signal transmission. The connector is RoHS3 compliant and REACH unaffected, with an MSL of Level 1 (unlimited). It is commonly used in data communication, serial interfaces, and industrial control systems where a robust, standardized connector is required.
9 positions.
5A per contact.
Free Hanging (In-Line).
Solder Cup.
Gold.
Steel, Tin Plated.
UL94 V-0.
