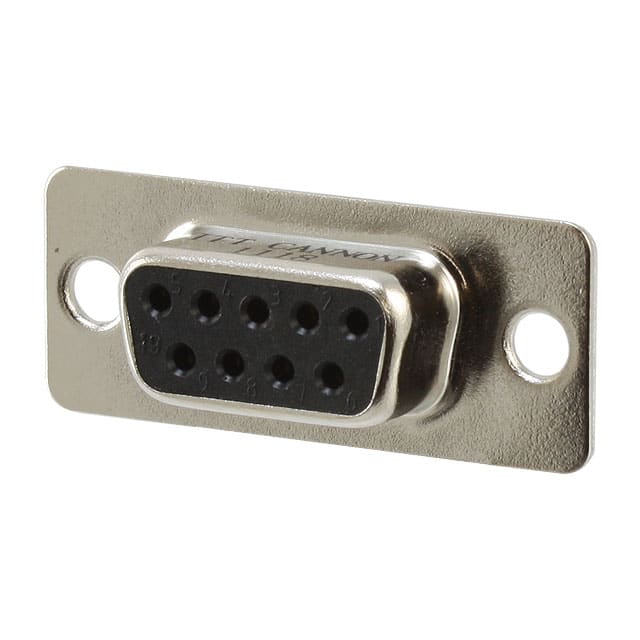

The ITT Cannon DE-9S-A197 is a standard D-Subminiature receptacle from the ORIGINAL D series. It has 9 positions arranged in 2 rows with size 20 contacts, using a DE (E) shell size. The connector is designed for through hole mounting with solder pot termination, accommodating wire gauges from AWG 20 to 28.
Electrical specifications include a current rating of 7.5 A at 85°C and 5 A at 105°C, with a maximum contact resistance of 10 milliohms. The dielectric withstanding voltage is 1200 VAC at sea level. The operating temperature range is -55°C to +125°C, and the connector is rated for a minimum of 50 mating cycles.
The contacts are made of copper alloy with a gold flash finish (Performance Class 3). The shell is steel with a tin finish, and the insulator is black thermoplastic PCT material with a UL94 V-0 flammability rating. The connector also meets a minimum 20-hour salt spray test requirement.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.15 | $15.15 |
| 10+ | $12.87 | $12.87 |
| 25+ | $12.07 | $12.07 |
| 84+ | $11.08 | $11.08 |
| 168+ | $10.55 | $10.55 |
| 252+ | $10.25 | $10.25 |
| 504+ | $9.76 | $9.76 |
| 1,008+ | $9.30 | $9.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DE-9S-A197 has 9 positions arranged in 2 rows.
The current rating is 7.5 A at 85°C and 5 A at 105°C.
The mounting type is through hole.
It uses solder pot termination.
The operating temperature range is -55°C to +125°C.
It accepts wire gauges from AWG 20 to 28.
The contact finish is gold flash (Performance Class 3).
