| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250,000 pcs
|
250000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Impedance (Max) (Zzt) | |
| Impedance (Maximum) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current (Maximum @ 10 V) | |
| Supplier Device Package | |
| Tolerance | |
| Voltage | |
| Zener Voltage (Nominal) | |
| forward_voltage (Maximum @ @ 10 mA) |
The DDZ13BS-7 is a surface mount precision Zener diode from Diodes Incorporated. It features a nominal Zener voltage of 12.88V with a tolerance of ±2.56%. The device is rated for a maximum power dissipation of 200mW and is designed for automated assembly processes.
Key electrical characteristics include a maximum forward voltage of 900mV at 10mA, a maximum reverse leakage current of 100nA at 10V, and a maximum Zener impedance of 14Ω. The device operates over a junction temperature range of -65°C to 150°C.

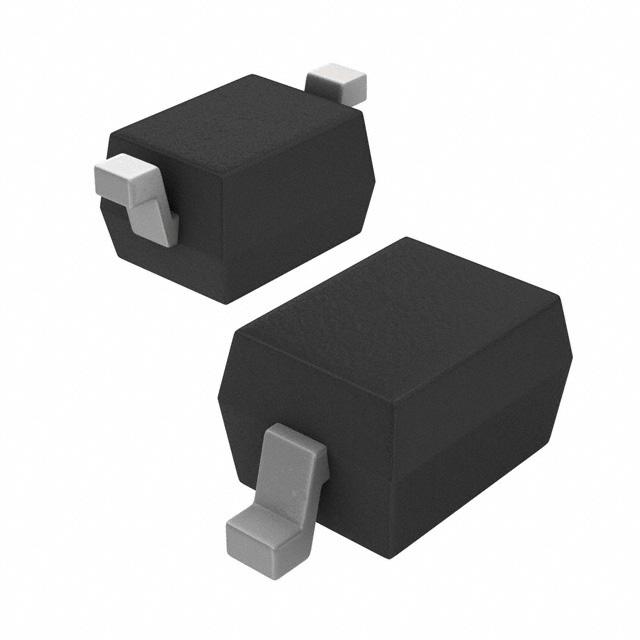

The DDZ13BS-7 is housed in a surface mount SOD-323 package (SC-76 case style). It is RoHS3 compliant, lead-free, and halogen and antimony free, making it suitable for environmentally sensitive designs.
The nominal Zener voltage is 12.88V.
The maximum power dissipation is 200mW.
It is available in a surface mount SOD-323 package.
The maximum forward voltage is 900mV at 10mA.
The operating junction temperature range is -65°C to 150°C.
