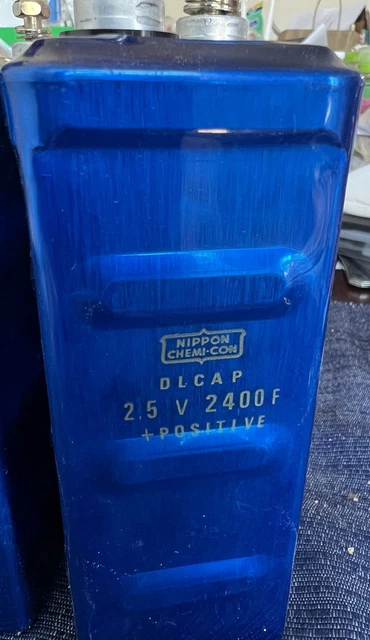

DDSC2R5LGN242K54BS The Nippon Chemi-Con DDSC2R5LGN242K54BS is a 2400 Farad, 2.5 Volt supercapacitor. It is designed for chassis mounting with screw termination.
Mfr Part #:

DDSC2R5LGN242K54BS

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The Nippon Chemi-Con DDSC2R5LGN242K54BS is a 2400 Farad, 2.5 Volt supercapacitor. It is designed for chassis mounting with screw termination.
✓ Total Stock: 1 pcs
$ Price Range: $1.20

DDSC2R5LGN242K54BS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DDSC2R5LGN242K54BS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Style
Termination Style
Weight
View Similar Products (0)

DDSC2R5LGN242K54BS Description

Short technical summary and product information.

This Nippon Chemi-Con DDSC2R5LGN242K54BS is an electric double-layer supercapacitor with a capacitance rating of 2400 Farads and a tolerance of ±10%.



It operates at a maximum voltage of 2.5V and features a low internal resistance of 0.7 milliohms. The operating temperature range is from -30 °C to 65 °C.



Designed for chassis mounting, this supercapacitor utilizes screw termination. Its dimensions are 54mm x 54mm x 139mm, with a diameter of 60.7mm, height of 128mm, length of 135mm, and width of 54mm. The component weighs 520 grams.



This part is from the DSC Series and is supplied in bulk packaging.

DDSC2R5LGN242K54BS Quick Information

Product Type: Supercapacitor
Series: DSC
Canonical Name: Nippon Chemi-Con DDSC2R5LGN242K54BS Supercapacitor
Subcategory: Electric Double Layer Capacitor

DDSC2R5LGN242K54BS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DDSC2R5LGN242K54BS Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DDSC2R5LGN242K54BS Features

  • 2400 Farad capacitance rating.
  • 2.5 Volt maximum operating voltage.
  • Low internal resistance of 0.7 milliohms.
  • Wide operating temperature range.
  • Chassis mount with screw termination.

DDSC2R5LGN242K54BS Applications

  • Ideal for energy storage applications.
  • Suitable for backup power systems.
  • Used in power smoothing circuits.
  • Applicable for pulse power demands.

DDSC2R5LGN242K54BS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance rating of the DDSC2R5LGN242K54BS?

The nominal capacitance is 2400 F with a tolerance of ±10%.

What is the maximum operating voltage?

The maximum operating voltage is 2.5 V.

What is the typical ESR of this supercapacitor?

The typical equivalent series resistance (ESR) is 0.7 mΩ.

What is the operating temperature range?

The operating temperature range is -30°C to 65°C.

What is the mounting style and termination?

The mounting style is chassis mount with screw terminals.

What are the physical dimensions of the DDSC2R5LGN242K54BS?

The diameter is 60.7 mm, height is 128 mm, width is 54 mm, and length with terminals is 135 mm. The case size is 54 mm x 54 mm x 139 mm.

How much does the DDSC2R5LGN242K54BS weigh?

The weight is 520 grams (1 lb 2.35 oz).
