| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

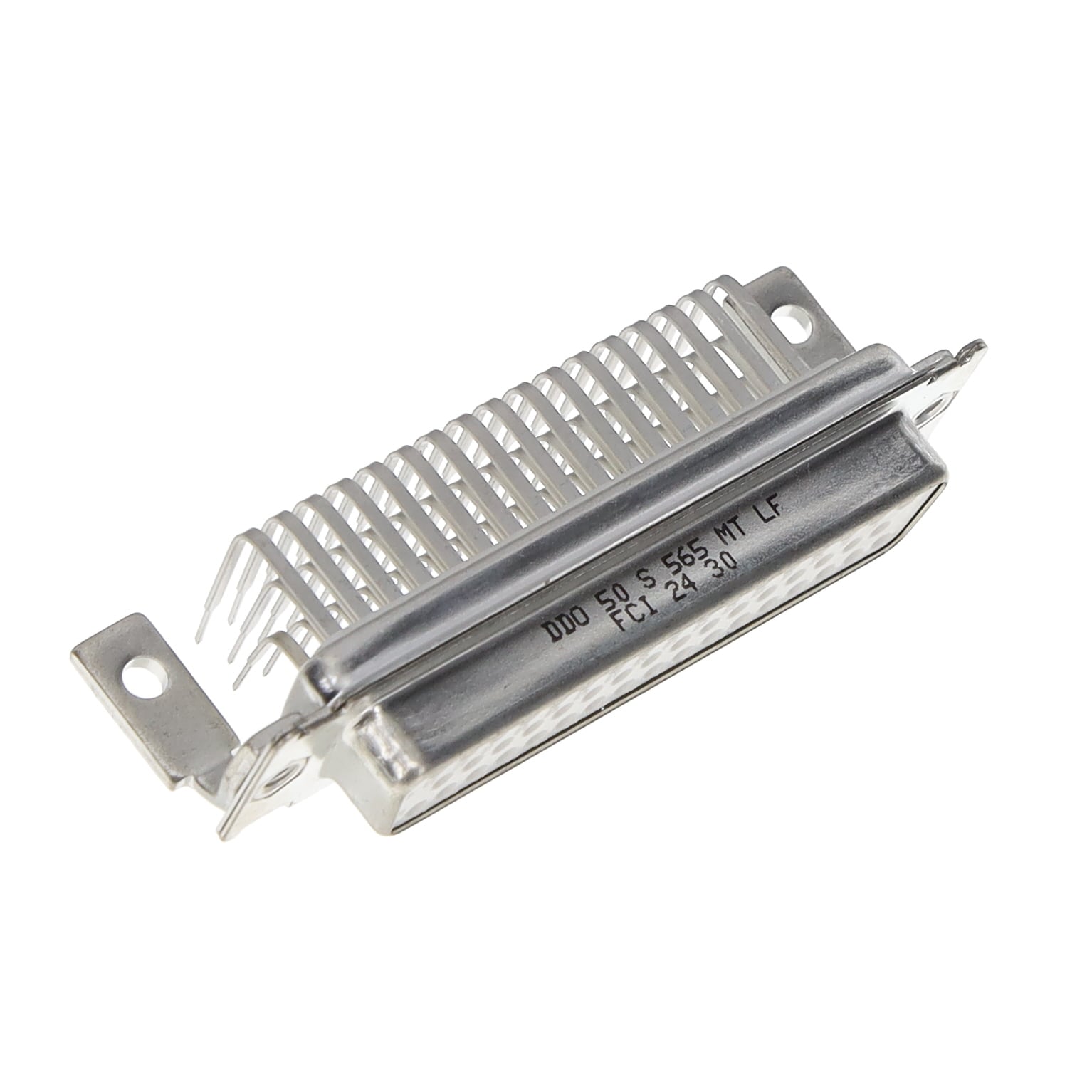

The DDO50S565MTLF is a D-Sub receptacle (female sockets) from Amphenol ICC, designed for signal applications requiring a compact and reliable connection. It offers 50 positions arranged in 3 rows, with a shell size of 5 (DD, D). The connector is mounted via through-hole, right angle orientation, and terminated with solder contacts.
Key specifications include a current rating of 5 A per contact, with contacts finished in gold or Gold, GXT™ to ensure low resistance and corrosion resistance. The steel shell is tin plated for durability, and the insulator is rated UL94 V-0 for flammability. The connector features mounting brackets and a flange with 4-40 threads for secure panel attachment, with a backset spacing of 0.409 inches.
This connector is suitable for use in data communication, industrial control, and test equipment where a robust and standard D-Sub interface is required. The right angle mounting allows for space-saving designs on PCBs.
50 positions.
5 A per contact.
Through hole, right angle.
3 rows.
Gold or Gold, GXT™.
5 (DD, D).
UL94 V-0.
