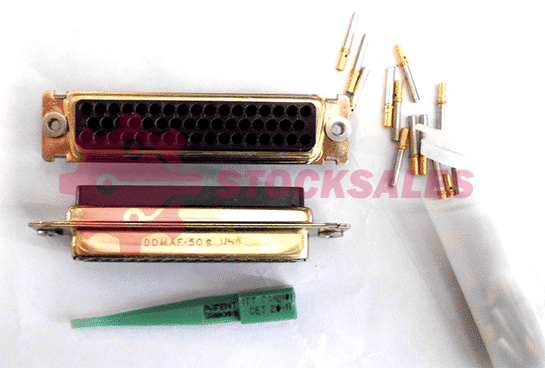

DDMAF50S DDMAF50S is a 50-position D-Sub receptacle connector from ITT Cannon with female sockets, panel mount, and crimp termination. It features gold-plated contacts and a steel shell with yellow chromate plating.
Mfr Part #:

DDMAF50S

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
DDMAF50S is a 50-position D-Sub receptacle connector from ITT Cannon with female sockets, panel mount, and crimp termination. It features gold-plated contacts and a steel shell with yellow chromate plating.
✓ Total Stock: 2 pcs

DDMAF50S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DDMAF50S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Flange Feature
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
View Similar Products (0)

DDMAF50S Description

Short technical summary and product information.

The DDMAF50S is a D-Subminiature receptacle connector from ITT Cannon's D*MA series, designed to meet MIL-DTL-24308 specifications. It offers 50 positions in a 3-row arrangement with female sockets, making it suitable for high-density signal connections in demanding environments.



This connector features a panel mount design with a steel shell finished with yellow chromate plated zinc for corrosion resistance. The crimp termination allows for flexible wire assembly accepting AWG 20 to 28 gauge wires. Contacts are gold-plated to ensure reliable signal integrity over 500 mating cycles.



Electrical characteristics include a current rating of 7.5A per contact. The insulator material meets UL94 V-0 flammability rating, ensuring safety in industrial applications. The connector uses a DD shell size (5) with an unthreaded flange feature for straightforward panel mounting.



Typical applications include industrial control systems, aerospace and military equipment, medical devices, and data communication interfaces where a robust, field-replaceable connector is required.

DDMAF50S Quick Information

Product Type: D-Sub Connector Assembly
Series: D*MA
Canonical Name: DDMAF50S D-Sub Receptacle Connector, 50 Position, Female Sockets, Panel Mount, Crimp Termination
Subcategory: D-Sub Connector Assemblies

DDMAF50S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DDMAF50S Features

  • 50-position D-Sub receptacle with female sockets.
  • Panel mount design with crimp termination.
  • Gold-plated contacts for reliable signal transmission.
  • Rated for 7.5A continuous current per contact.
  • Steel shell with yellow chromate zinc plating.

DDMAF50S Applications

  • Ideal for industrial control systems.
  • Used in aerospace and military equipment.
  • Suitable for data communication interfaces.
  • Employed in medical device connectivity.

DDMAF50S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DDMAF50S have?

50 positions.

What is the current rating of the DDMAF50S?

7.5A per contact.

What mounting type does the DDMAF50S use?

Panel mount.

What termination style does the DDMAF50S have?

Crimp termination.

How many rows of contacts are in the DDMAF50S?

3 rows.

What is the contact finish on the DDMAF50S?

Gold.

Is the DDMAF50S RoHS compliant?

Yes, it is RoHS3 compliant.
