| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| RoHS Compliant | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Wire Gauge Range |

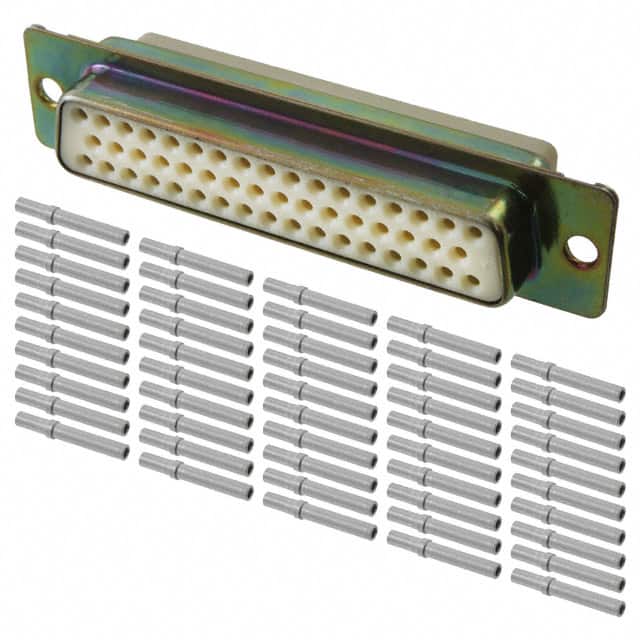

The DDMA-50S is a D-Sub connector assembly from ITT Cannon, part of the D*MA series of crimp connectors designed per MIL-DTL-24308. It features a receptacle with 50 female sockets arranged in 3 rows. The connector is panel mounted with a steel, tin-plated shell and housing/unthreaded flange feature. Contacts are gold-plated for signal applications. The current rating is 7.5A per contact. The connector is rated for 500 mating cycles and has a material flammability rating of UL94 V-0. Termination is via crimp, accepting wire gauges from 20 to 24 AWG. RoHS compliant versions are available. This connector is suitable for industrial, military/aerospace, and telecom applications where reliable D-Sub interconnectivity is required.
50 positions.
7.5A per contact.
Panel mount.
Crimp termination.
RoHS compliant versions are available.
