| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

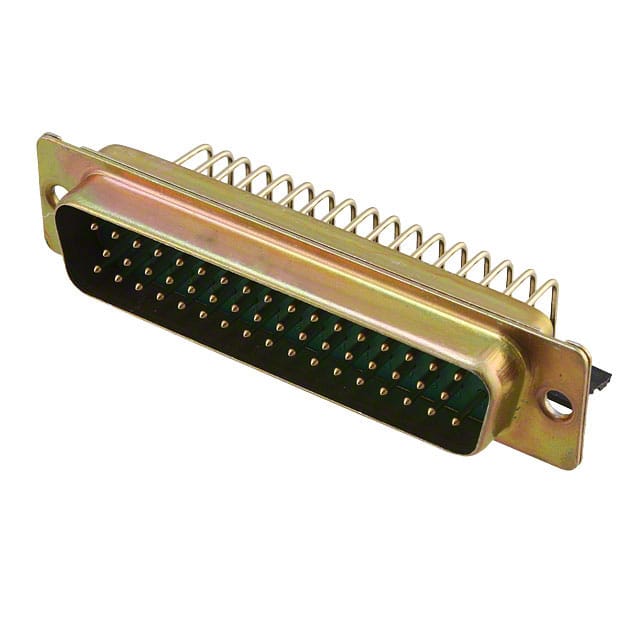

The Amphenol ICC DDM50P500C is a D-Sub connector plug featuring 50 male pin contacts arranged in 3 rows. It is designed for through hole right angle mounting with solder termination, making it suitable for applications requiring a compact right-angle connection to a PCB.
This connector uses signal contacts with gold finish for reliable conductivity. Each contact is rated for 7.5 A nominal current. The shell is made of steel with yellow cadmium plating, and the housing material has a UL94 V-0 flammability rating. The connector layout is shell size 5 (DD, D) with an unthreaded housing/shell flange feature and a backset spacing of 10.30 mm.
The DDM50P500C is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is commonly used in data communication, industrial control, and instrumentation equipment where a high-density 50-position D-Sub interface is required.
Plug, Male Pins.
50 positions.
Through Hole, Right Angle.
7.5 A nominal per contact.
Gold.
RoHS3 Compliant (unverified).
Steel, Yellow Cadmium Plated.
