| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Voltage Rating |

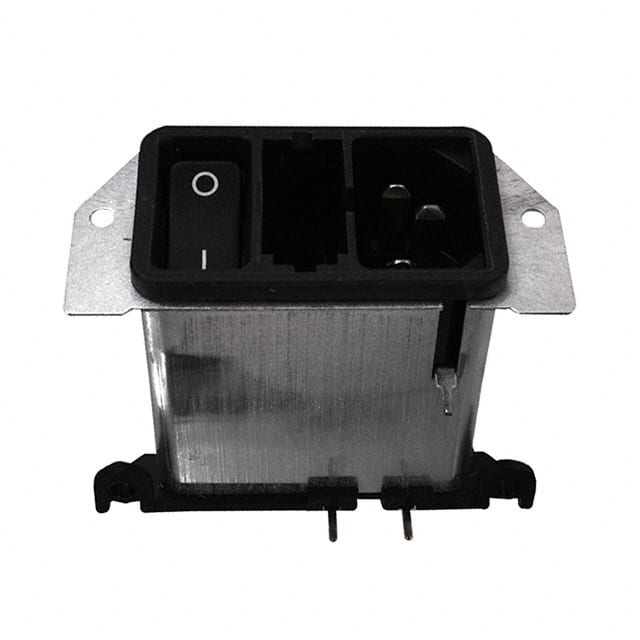

The Schurter DD22.4321.1111 is a power entry module designed for commercial and medical equipment requiring EMI/RFI filtering. It integrates an IEC 320-C14 receptacle, a single-pole on-off switch, and a filtered line input in one compact module.
Rated for 4A at 250VAC, this module provides basic electromagnetic interference suppression suitable for many low-power applications. The connector style is IEC 320-C14 with male blade contacts. Mounting options include panel mount with flange or through-hole right-angle solder terminals, plus quick-connect tabs (0.250").
The module accommodates a fuse (not included) with a separate fuse drawer sold separately. It carries an IP40 ingress protection rating and uses UL94 V-0 rated materials. Approvals include cULus and ENEC.
The current rating is 4 A.
The voltage rating is 250 VAC.
It uses an IEC 320-C14 connector style.
It accommodates a fuse, but the fuse is not included. The fuse drawer is sold separately.
It supports panel mount with flange and through-hole right-angle mounting.
The ingress protection rating is IP40.
It is approved by cULus and ENEC.
