| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Category | |
| Ingress Protection | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| Material Flammability Rating | |
| Mounting Screw Torque | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Thickness (Maximum @ Screw-on mounting) | |
| Power Acceptance (Nominal @ 1 pole @ Ta 23 °C) | |
| Power Acceptance (Nominal @ 2-pole @ Ta 23 °C) | |
| Protection Class | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| panel_thickness (Nominal @ Snap-in version) |

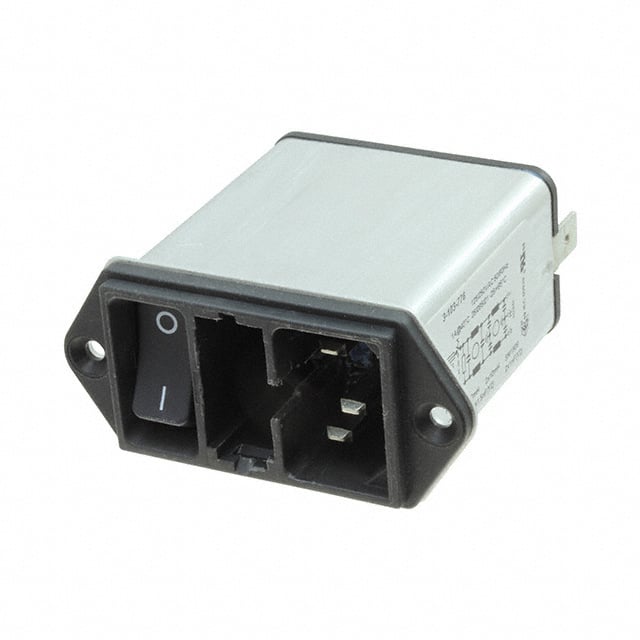

The Schurter DD14-62121-12111-1100 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 2-stage EMI/RFI filter, a 2-pole on-off switch, and a fuse holder for 5x20mm fuses (fuse drawer sold separately). It is rated for 10A at 250VAC (IEC/UL) and features a shielded aluminum case for effective interference suppression.
Key electrical specifications include a maximum leakage current of 0.5mA (standard) or 5µA (medical version), dielectric strength of 1.7kVDC between L-N and 2.7kVDC between L/N-PE, and an operating temperature range of -25°C to 85°C. The module is approved to cURus and ENEC standards and meets UL94 V-0 flammability rating.
Mechanically, the module offers panel mount with flange (screw-on, max panel thickness 8mm) or snap-in mounting (1-3mm panel). Termination is via quick connect 0.250" (6.3mm) tabs. The V-Lock notch ensures secure cord retention. The design is ultra-compact, ideal for low-profile equipment requiring multiple functions in a single package.
3 positions (Line, Neutral, Ground).
10A at 40°C, 250VAC (IEC/UL).
250VAC.
Panel mount with flange (screw-on, max panel thickness 8mm) or snap-in mounting (1-3mm panel).
No, the fuse is not included. The fuse drawer is sold separately.
IP40.
cURus and ENEC approved.
