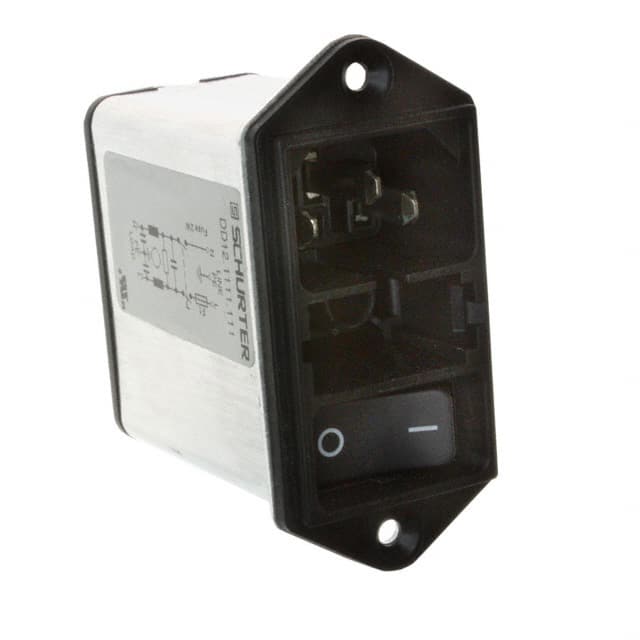

The Schurter DD12.2111.111 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 2-pole line switch, a fuseholder for 5x20mm fuses, and an EMI/RFI line filter in a single panel-mount package. It is rated for 2A at 250VAC and features a leakage current of less than 0.5 mA at 250V/60Hz. The module includes a V-Lock notch for cord retention and an earth line choke for enhanced filtering.
The module is designed for screw-on panel mounting from the front side, with a rectangular cutout of 29.80mm x 49.30mm and a maximum panel thickness of 0.315 inches (8.00mm). Termination is via quick connect tabs (0.250" / 6.3mm). The housing is shielded and carries a UL94 V-0 flammability rating. The operating temperature range is -25°C to 85°C, with an IP40 protection rating.
This component is suitable for applications requiring a filtered power entry solution with integrated switching and fuse protection. It is approved to cURus and ENEC standards and is RoHS3 and REACH compliant. The fuseholder drawer is sold separately.
The component is rated for 2A at 250VAC. The fuseholder can accept fuses rated 1-10A (IEC/UL).
It includes a filtered (EMI, RFI) commercial line filter with an earth line choke.
No, the fuse is not included. The module accommodates a 5x20mm fuse and the fuseholder drawer is sold separately.
The required panel cutout is rectangular, 29.80mm x 49.30mm, with a maximum panel thickness of 0.315 inches (8.00mm).
The operating temperature range is -25°C to 85°C.
It is approved by cURus and ENEC, and is RoHS3 and REACH compliant.
The leakage current is less than 0.5 mA at 250V/60Hz.
