| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuseholder Category | |
| Glow Wire Test | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Power Acceptance (Nominal @ 1-pole @ 23 °C) | |
| Power Acceptance (Nominal @ 2-pole @ 23 °C) | |
| Protection Class | |
| Safety Standard | |
| Switch Configuration | |
| Switch Features | |
| Termination | |
| Termination Style | |
| V-Lock Feature | |
| Voltage Rating |

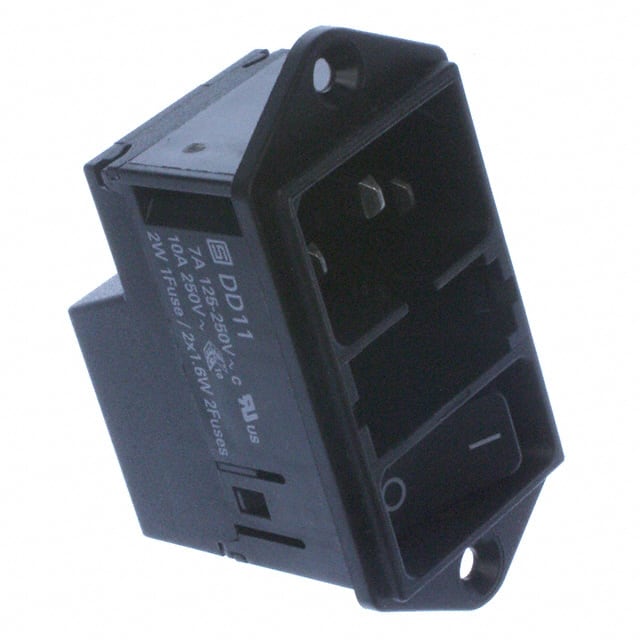

The Schurter DD11.0121.1111 is a compact power entry module combining an IEC 320-C14 appliance inlet, a 2-pole rocker switch (On-Off), and a fuseholder for 5x20mm fuses (1- or 2-pole, drawer sold separately) in a single panel-mount package. It is rated for 10 A at 250 VAC (IEC/UL/CSA) and features quick-connect terminals (4.8 x 0.8 mm). The housing is made of thermoplastic with a UL94 V-0 flammability rating and provides IP40 protection on the front side.
This unfiltered module is designed for protection class I equipment and includes a V-Lock notch for secure cord retention. It meets the requirements of IEC/UL 62368-1 and passes glow wire tests per IEC 60695-2-11/-12/-13. The operating temperature range is -25°C to +85°C. Panel mounting is via screw-on from the front side; the recommended panel cutout is 28.10 mm x 47.10 mm, accepting a maximum panel thickness of 8 mm.
It is rated for 10 A at 250 VAC (IEC/UL/CSA).
It accepts 5x20 mm fuse-links, 1- or 2-pole. The fuse drawer is sold separately and the fuse is not included.
It is panel mounted using a screw-on flange from the front side. The panel cutout is rectangular, 28.10 mm x 47.10 mm, and accepts a maximum panel thickness of 8 mm.
