| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| SVHC Present | |
| Supplier Device Package | |
| Transistor Type |
The Diodes Incorporated DCX69-16 is a PNP bipolar junction transistor (BJT) suitable for various electronic circuits. This component features a maximum collector-emitter breakdown voltage of 20V and can handle a continuous collector current of up to 1A.
With a transition frequency of 200MHz and a maximum power dissipation of 1W, the DCX69-16 is designed for moderate signal amplification and switching tasks. The transistor operates within a temperature range of -55°C to 150°C.

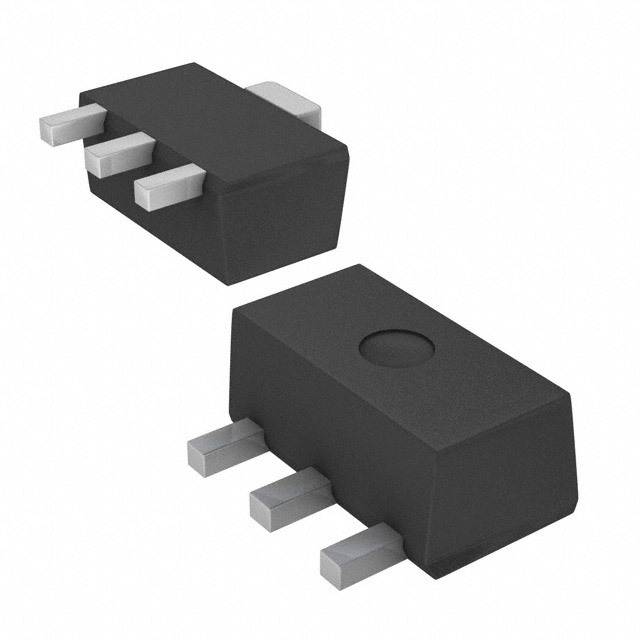

Packaged in a surface-mount SOT-89-3 (TO-243AA) case, this device is ideal for applications where space is a constraint. The DCX69-16 is RoHS compliant and has a Moisture Sensitivity Level of 1.
Key electrical characteristics include a minimum DC current gain (hFE) of 100 at 500mA and 1V, and a maximum collector cutoff current (ICBO) of 100nA. The saturation voltage (Vce(sat)) is a maximum of 500mV at 100mA and 1A.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20V.
SOT-89-3 (TO-243AA) surface mount.
-55°C to 150°C.
1A.
100 minimum at 500mA collector current and 1V collector-emitter voltage.
500mV at 100mA base current and 1A collector current.
200MHz.
