| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

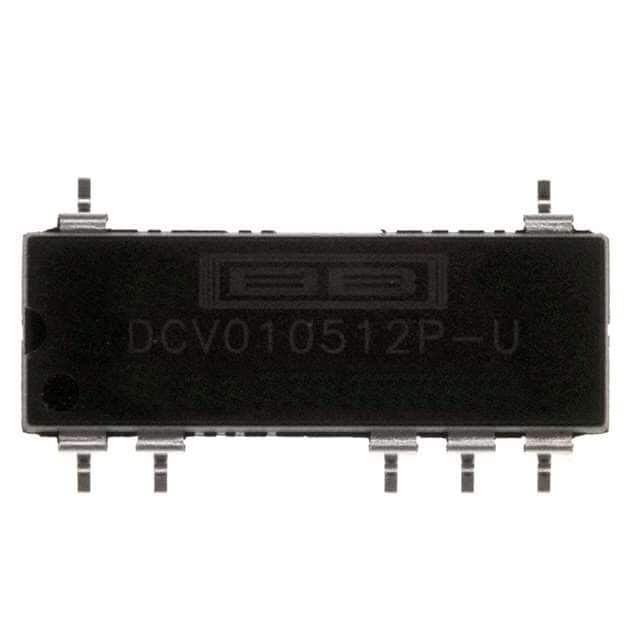

The Texas Instruments DCV010512P-U is an isolated DC-DC converter module designed for commercial ITE applications. It delivers a single 12V output at up to 83mA, providing 1W of isolated power. The module operates from a minimum input voltage of 4.5V and features an 85% typical efficiency. Protection features include over-temperature protection (OTP) and short-circuit protection (SCP). The converter is controlled via an enable input that is active high. The DCV010512P-U is housed in a compact 14-SMD module with 7 leads, measuring 19.7mm x 8.3mm x 5.3mm, and is surface mountable. It operates over a wide temperature range of -40°C to 85°C.
The output voltage is 12V.
The maximum output current is 83mA.
The power rating is 1W.
The operating temperature range is -40°C to 85°C.
It comes in a 14-SMD Module with 7 leads, surface mount.
Yes, it is listed as RoHS3 Compliant.
