| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,782 pcs
|
2782 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Size / Dimension | |
| Standard Package Quantity | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

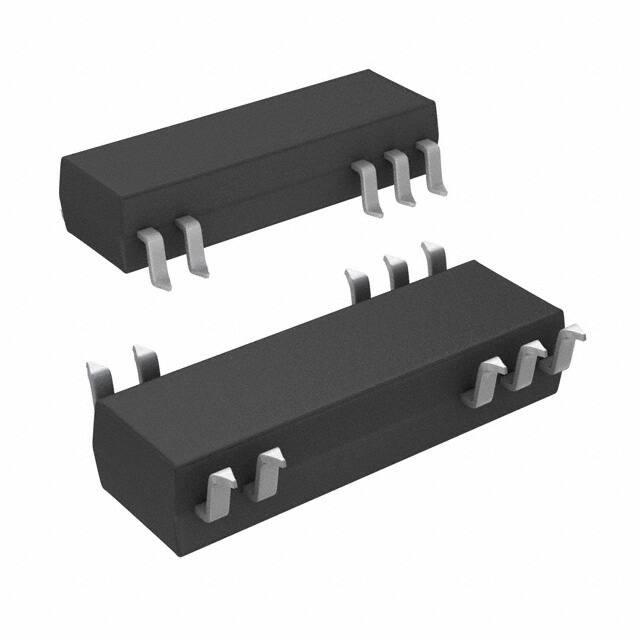

The Texas Instruments DCR021205P-U is a member of the DCR02 family of high-efficiency, input-isolated, output-regulated DC/DC converters. This module provides a nominal 5V output at up to 400mA, delivering 2W of isolated power. It operates from a minimum input voltage of 10.8V and features a switching frequency of 400kHz.
The DCR021205P-U includes protection features such as remote on/off control, over-temperature protection (OTP), and short-circuit protection (SCP). It offers 1kV isolation (operational, 1-second test) and is designed for commercial ITE applications. The converter is housed in an 18-SMD module with 10 leads, measuring 22.9mm x 7.1mm x 5.3mm, and is rated for surface-mount assembly. The operating temperature range is -40°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.03 | $19.03 |
| 10+ | $17.89 | $17.89 |
| 100+ | $16.94 | $16.94 |
| 1,000+ | $15.99 | $15.99 |
| 10,000+ | $15.04 | $15.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V nominal, and the maximum output current is 400mA.
The minimum input voltage is 10.8V. The maximum input voltage is not specified in the available data.
The operating temperature range is -40°C to 70°C.
It comes in an 18-SMD Module with 10 leads, surface-mount package (DVS code).
Yes, it is listed as RoHS3 Compliant.
It includes remote on/off control, over-temperature protection (OTP), and short-circuit protection (SCP).
The isolation voltage is 1kV (operational, 1-second test).
