| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 1815 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Input Voltage (Nominal) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Number of Pins | |
| Operating Temperature | |
| Output Current (Nominal) | |
| Output Power | |
| Output Voltage - Nominal | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

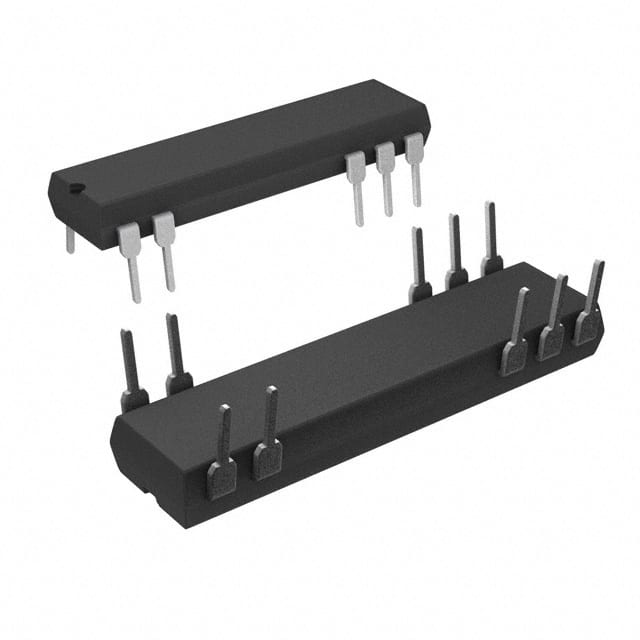

The Texas Instruments DCR021205P is an isolated DC-DC converter module designed for commercial ITE applications. It accepts a nominal input voltage of 10.8V and delivers a regulated 5V output at up to 400mA with a total power of 2W. The module includes remote on/off control, over-temperature protection (OTP), and short-circuit protection (SCP).
Housed in a compact 18-DIP through-hole package with 10 leads, the DCR021205P measures 22.9mm in length, 7.1mm in width, and 5.3mm in height. It operates over a temperature range of -40°C to 70°C and is RoHS3 compliant with MSL 1 (unlimited floor life). The module is also REACH unaffected.
This isolated converter is suitable for board-level power conversion in information technology equipment, providing a reliable and protected power supply. The single-output design simplifies integration in systems requiring a 5V rail. While the input voltage range is not specified in the available data, the nominal 10.8V input suggests compatibility with 12V supply rails. Designers should consult the full datasheet for detailed electrical characteristics, efficiency, and isolation ratings.
The output voltage is 5V.
The output current rating is 400mA.
The power rating is 2W.
The nominal input voltage is 10.8V.
The operating temperature range is -40°C to 70°C.
The package is an 18-DIP Module with 10 leads.
Yes, it is RoHS3 compliant.
