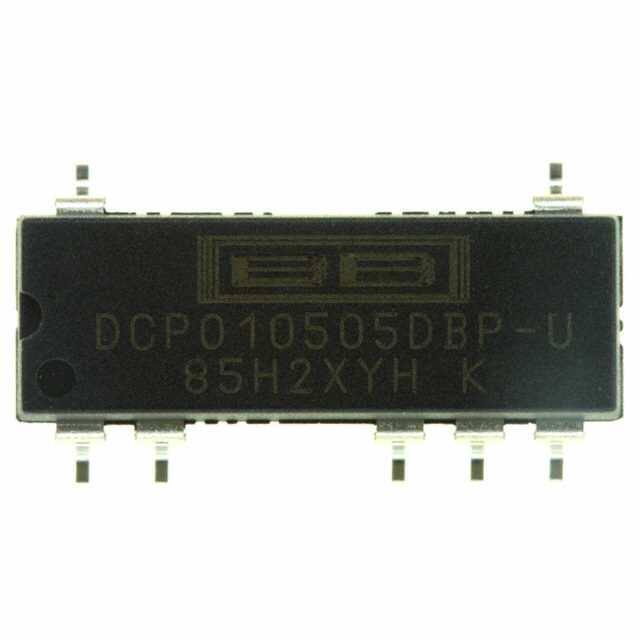

The DCP010505DBP-U is an isolated DC DC converter module from Texas Instruments. It provides dual output voltages of +5V and -5V, each capable of delivering up to 100mA, with a total output power of 1W. The device features an efficiency of 81% and includes over temperature protection and short circuit protection for reliable operation. It also incorporates an enable control feature with active high logic.
This converter is designed for surface mount assembly in a compact 14-SMD module with 7 leads, measuring 19.7mm x 8.3mm x 5.3mm. It operates over a wide temperature range of -40°C to 100°C, making it suitable for commercial ITE (Information Technology Equipment) applications. The module is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
As an isolated module, it provides galvanic isolation between input and output, which is essential for safety and noise reduction in sensitive circuits. The integrated protection features enhance system reliability. The DCP010505DBP-U is ideal for powering dual-supply analog circuits, op-amps, and other applications requiring a clean ±5V rail from a single input voltage.
It provides dual outputs of +5V and -5V.
Each output can deliver 100mA.
1W.
81%.
-40°C to 100°C.
14-SMD Module, 7 Leads, surface mount.
Yes, it is RoHS3 compliant and REACH unaffected.
